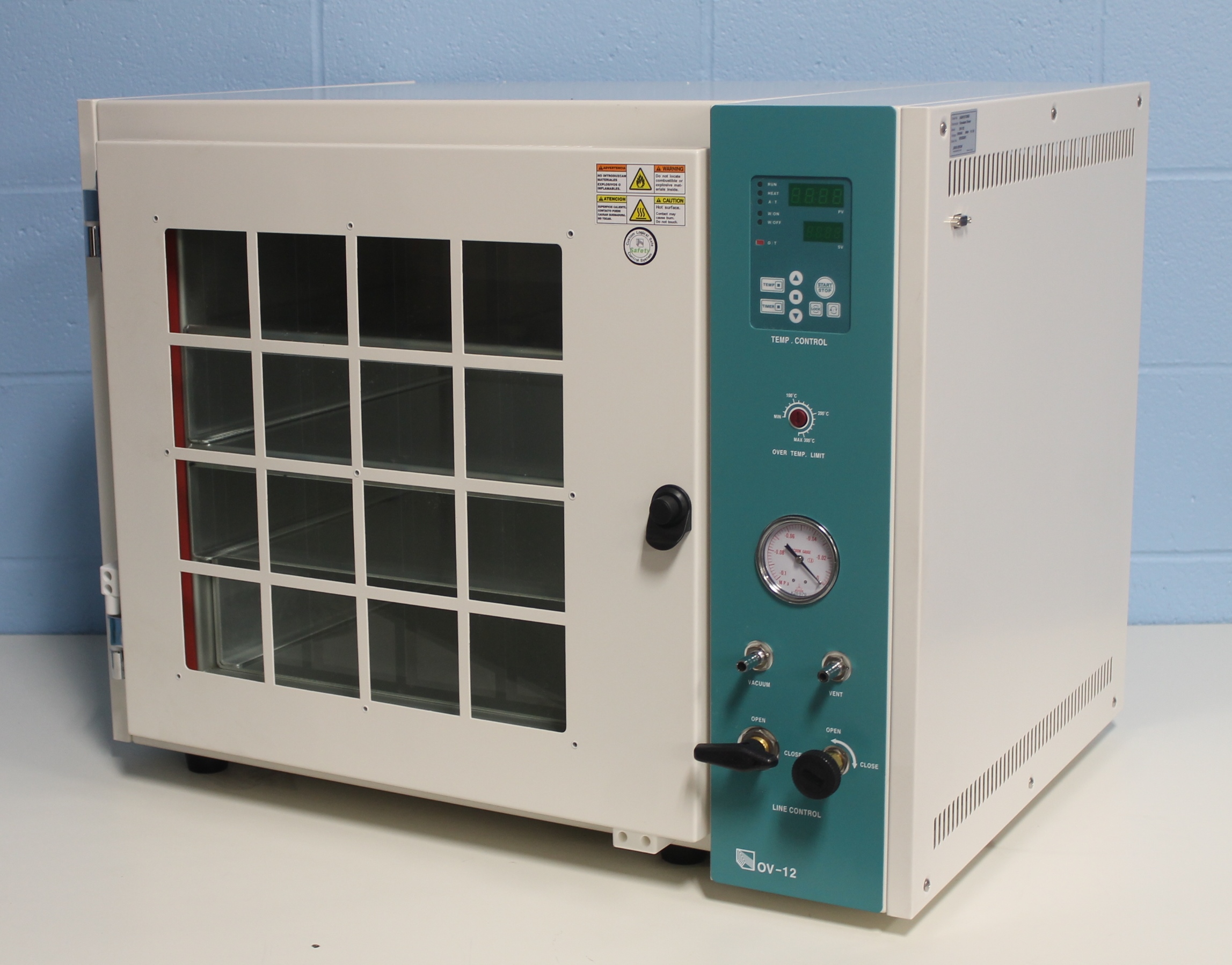

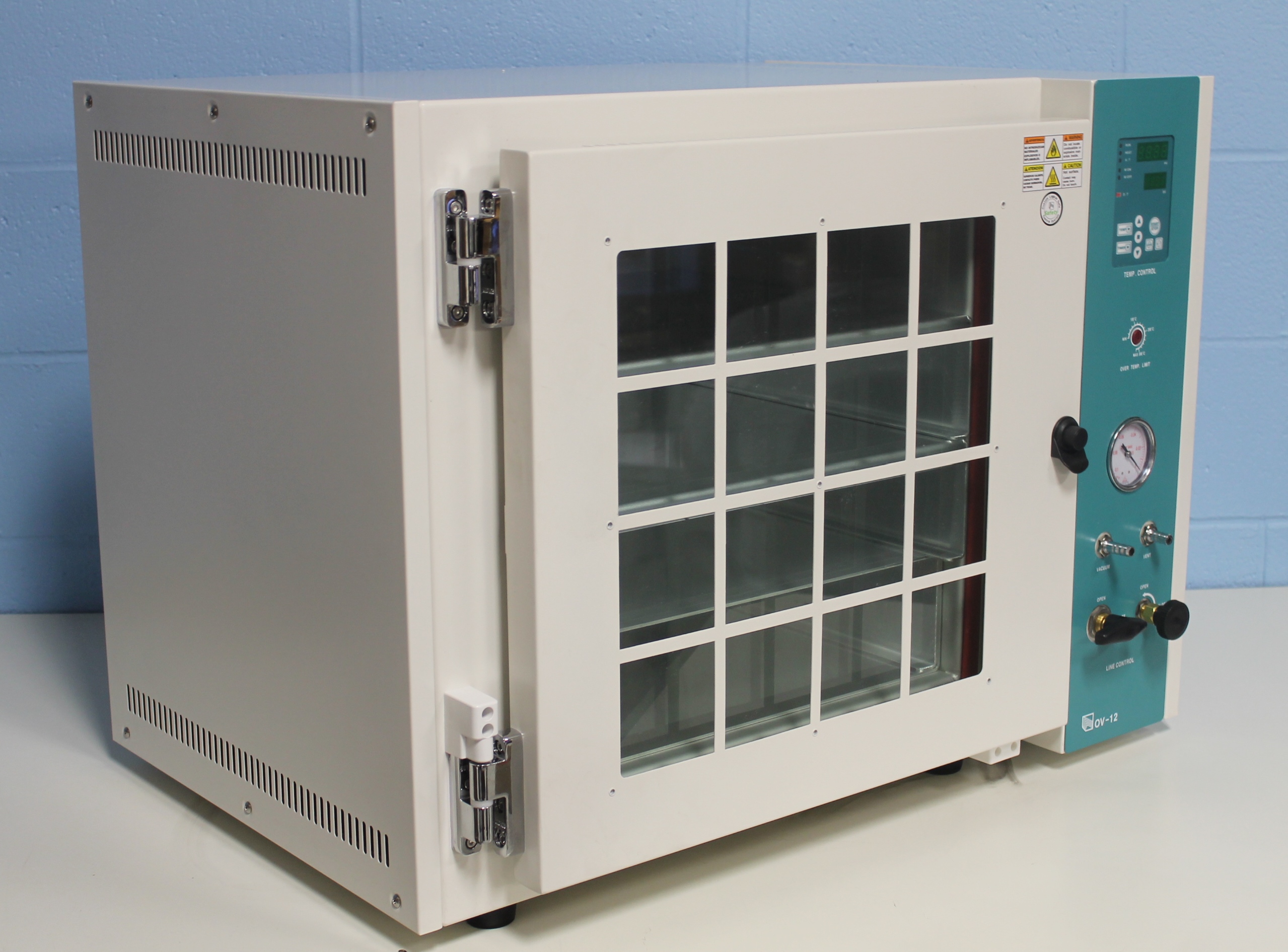

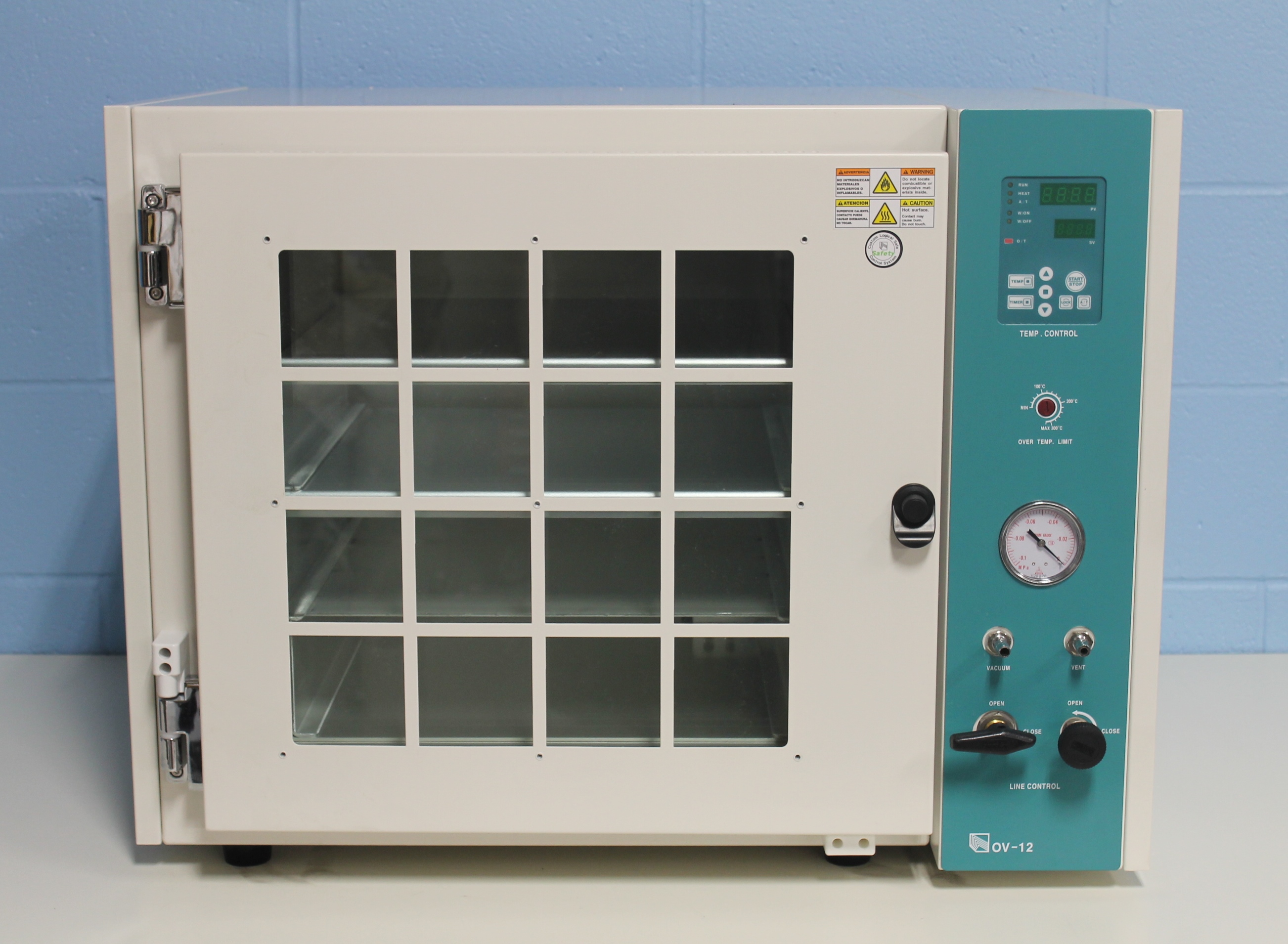

JEIO TECH OV-12 (65L) Forced Convection Oven

The OV-12 (65L) Forced Convection Oven is optimally constructed for separating solvents from solutions or drying solvents with high boiling points. Vacuum oven model with a wide temperature range optimal for separating solvents from solutions.

• Microprocessor PID control.
• Simple calibration and auto-tuning function.
• Temperature control: 5 above ambient to 250
• Vacuum range: 0 to 0.1 MPa. (analog vacuum gauge)
• Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min.
• Intuitive and easy-to-operate control panel with bright LED display (resolution) and touch-sensitive keypad.
• High temperature limit setting and open door alert.
• Convenient presetting function for 3 most commonly used temperature settings.
• RS-232 interface.

Specifications:

• Chamber Volume (L / cu ft): 65
• Vacuum Range: 0 ~ 0.1MPa, Analog
• Nozzle Size (mm / inch): Vacuum Ø10 / 0.4, Vent Ø10 / 0.4
• Temperature Range: Amb. +5 to 250 / Amb. +9 to 482
• Temperature Fluctuation 1)0.3 / 0.54
• Temperature Variation1): 3.7 / 6.66
• Dimension (W×D×H): Interior (mm / inch) 402×405×402 / 15.8×15.9×15.8
• Dimension (W×D×H) Exterior (mm / inch) 780×557×595 / 30.7×21.9×23.4
• Net Weight (Kg / lbs): 103 / 227
• Electrical Requirements (230V, 50 / 60 Hz):  6.1A
