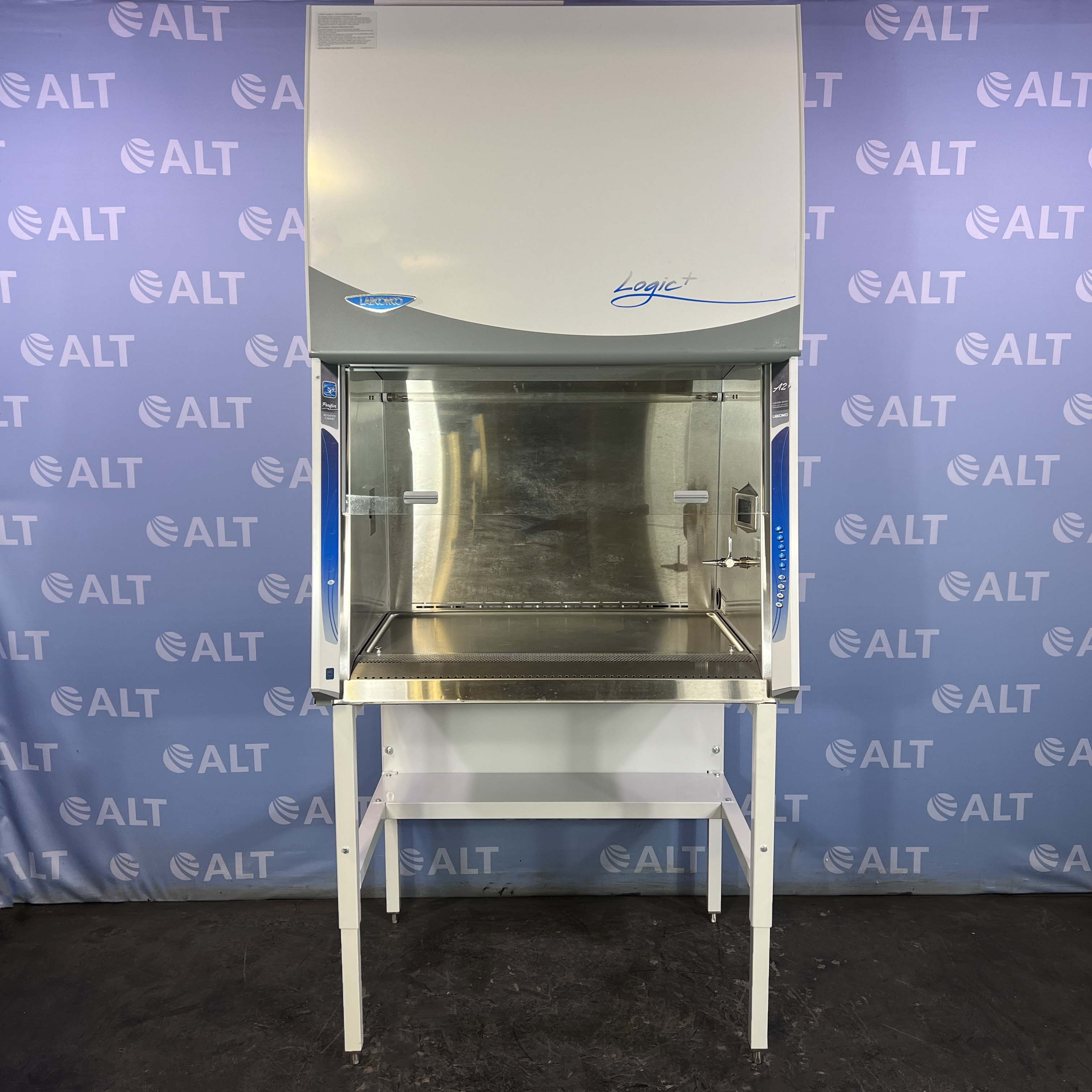

Labconco 3′ Logic+ Class II, Type A2 Biosafety Cabinet, Cat. No. 302389100

The Labconco 3′ Logic+ Class II, Type A2 Biosafety Cabinet, Cat. No. 302389100 provides personnel, product and environmental protection from hazardous particulates such as agents that require Biosafety level 2 containment. Appropriate applications include work with antineoplastic drugs, genetic material, asbestos and additional substances that generate hazardous airborne particulates.

The Labconco 3′ Logic+ Class II, Type A2 Biosafety Cabinet, Cat. No. 302389100 is designed to discharge HEPA-filtered exhaust air directly into the laboratory. During operation, room air is drawn into the inlet grill. The air in the plenum beneath the work surface is a mixture of unfiltered room air and air that has just passed through the work area. This contaminated air is drawn by the blower through the back plenum of the cabinet, where approximately 70% of the air is recirculated through the supply HEPA filter and back over the work area. The balance of the contaminated air is discharged to the environment after passing through the exhaust HEPA filter.

Features:

• Intrinsically-safe negative pressure design
• Supply and exhaust 99.99% efficient HEPA filters. 99.999% efficient

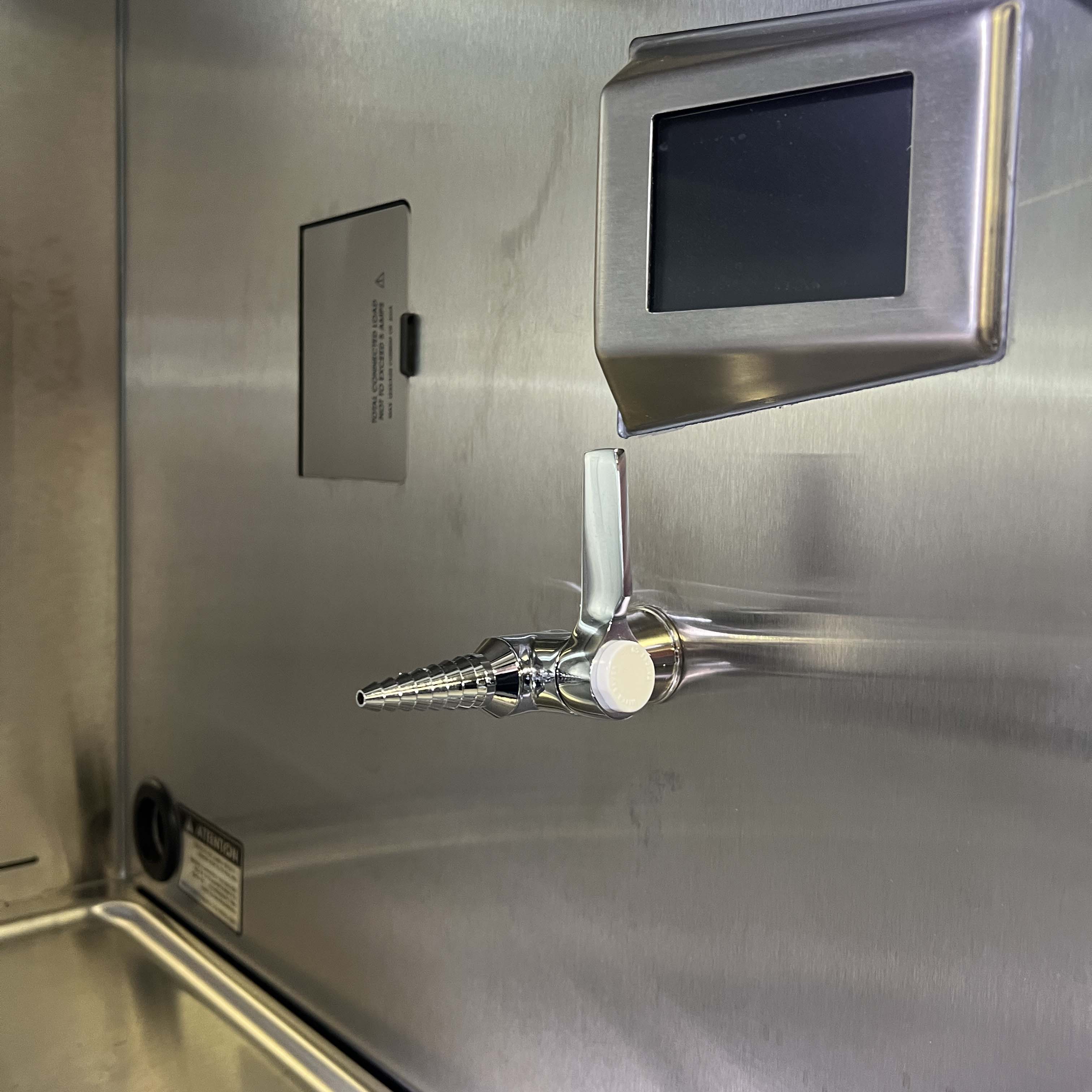

• Interior-mounted, line-of-sight color LCD with MyLogic OS. Displays filter life, status messages for alarm conditions and alerts. 8 languages available
• Fully-closing, clear 1/4″ tempered safety glass sash
• Curved stainless steel inlet grille with Reserve-Air Secondary Airflow Slots
• Two electrical duplex receptacles. Flush-mounted-stainless steel with dampened hinges. One outlet on each side, with ground fault interruption
• Leak-tight stainless steel interior & powder-coated steel exterior
• Code-activated electronic security lock
• 10° Angled sash with counterbalanced, easy lift mechanism
• ADA-Compliant touchpad control on right side post
• Approximately 70% air recirculation
• 10′ (3 m) power cord with plug
• Built-in timer and digital clock

Specifications:

Product Subcategory: Class II, Type A2 Biological Safety Cabinets
Nominal Width: 3′
Protection Type: Product and Personnel
Nominal Sash Opening: 8″ (20.3 cm)
Region: US/Canada
Conformance: ADA, CAN/CSA C22.2, CE, ETL, NSF 49, UL
Lighting: Fluorescent, Ultraviolet
Service Fixtures: One
Weight: 585 lb (265.4 kg)
Dimensions: 42.3″ W x 31.2″ D x 61.75″ H (107.4 x 79.2 x 156.8 cm)
Electrical: 115V, 60 Hz, 12A
