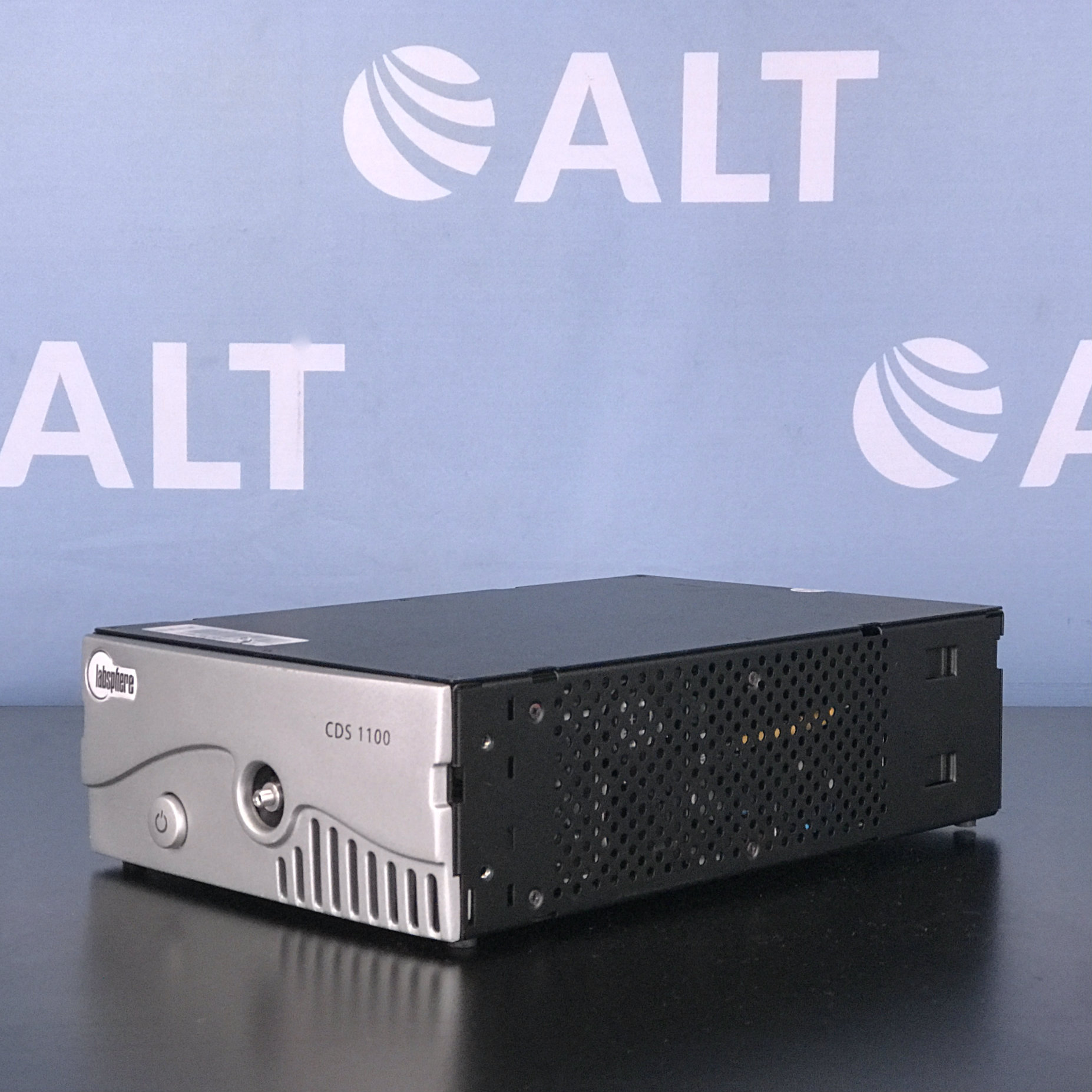

Labsphere CDS 1100 Spectrometer

Features of the Labsphere CDS 1100 Spectrometer include:

– Detector: TE Cooled 1044 x 64 CCD (back thinned)
– Spectral Range: 250-850 nm
– Resolution: 1.5 FWHM
– Integration Time: 10ms– 60s
– Cooling: 10 +/-0.05 C
– TE Temp Drift: +/-1 C
– Linearity: +/-0.5%
– Wavelength Accuracy: <+/-0.4 nm
– Stray Light Broadband: <10-4 at 400nm w/ Ill A source
– Stray Light LED/laser: <10-5 at 500nm w/633 nm laser
– Focal Length: 100 mm
– Speed: 0.1 scans /sec
