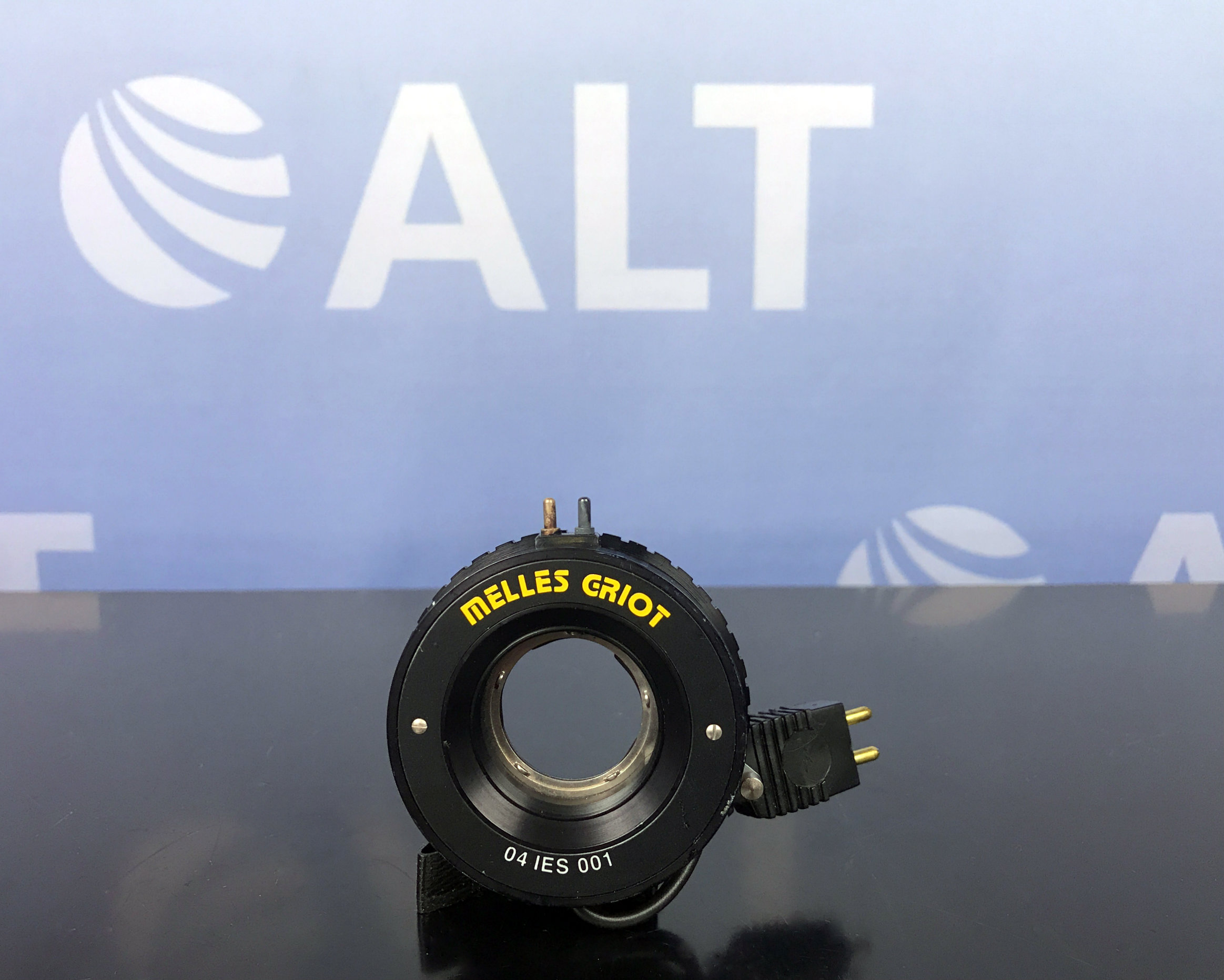

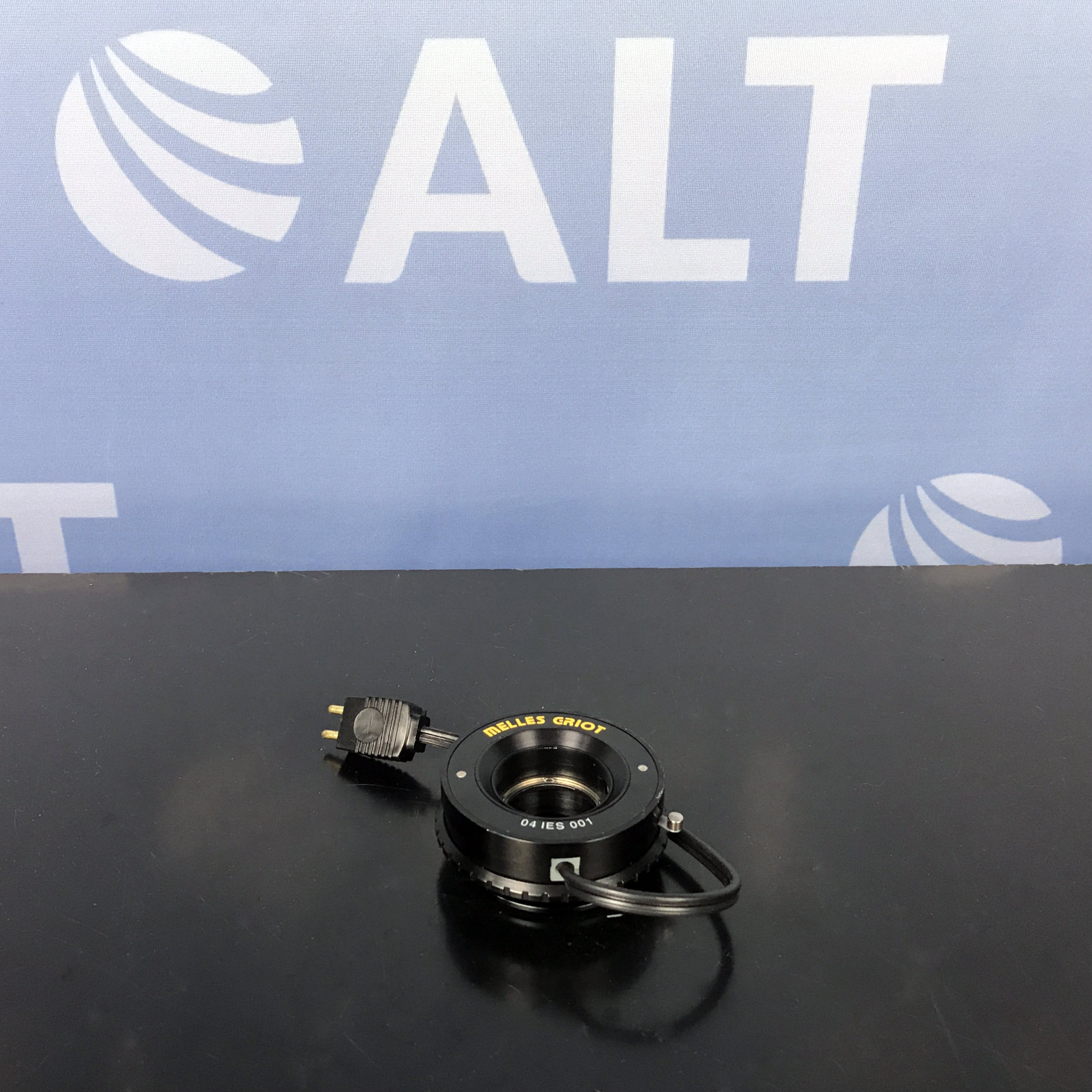

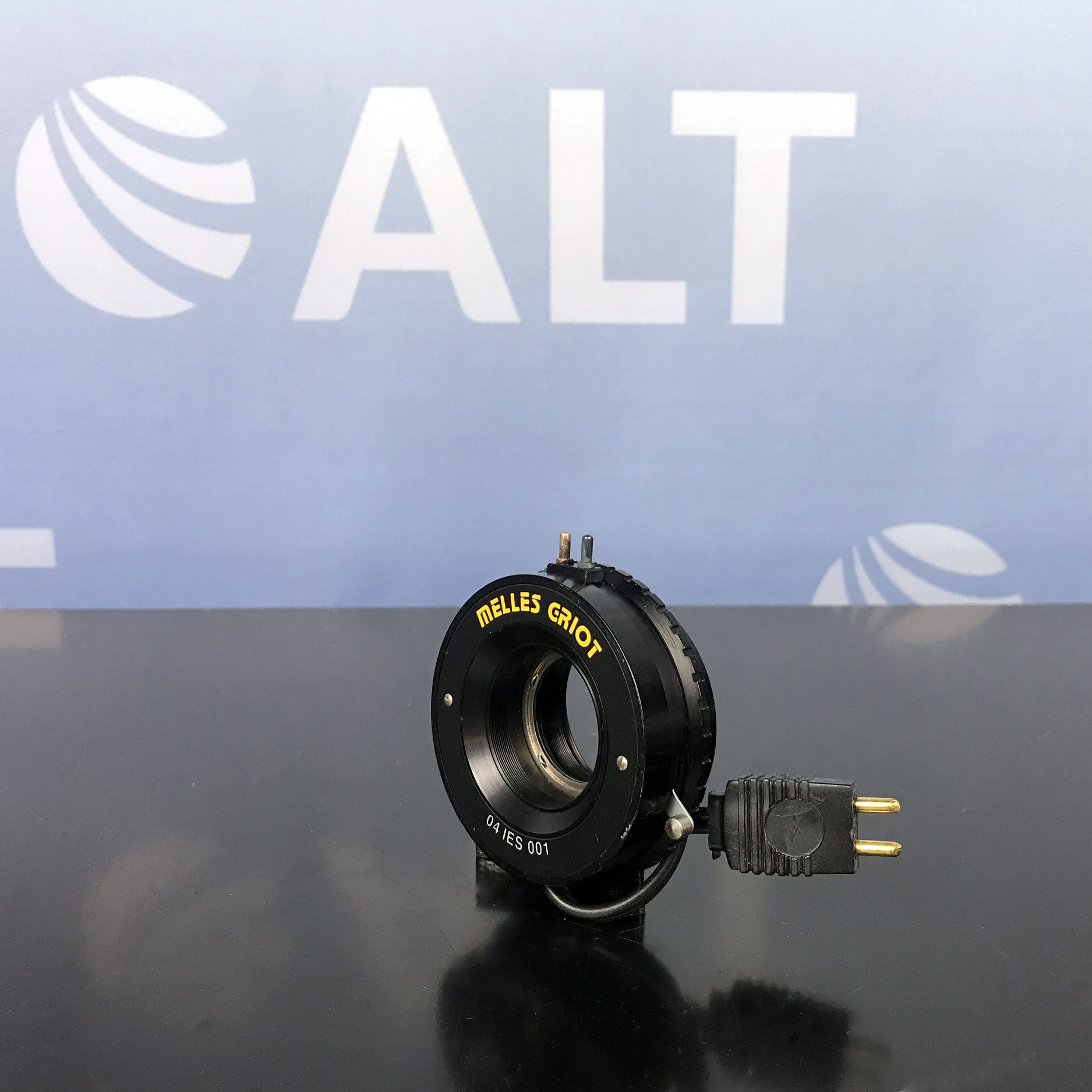

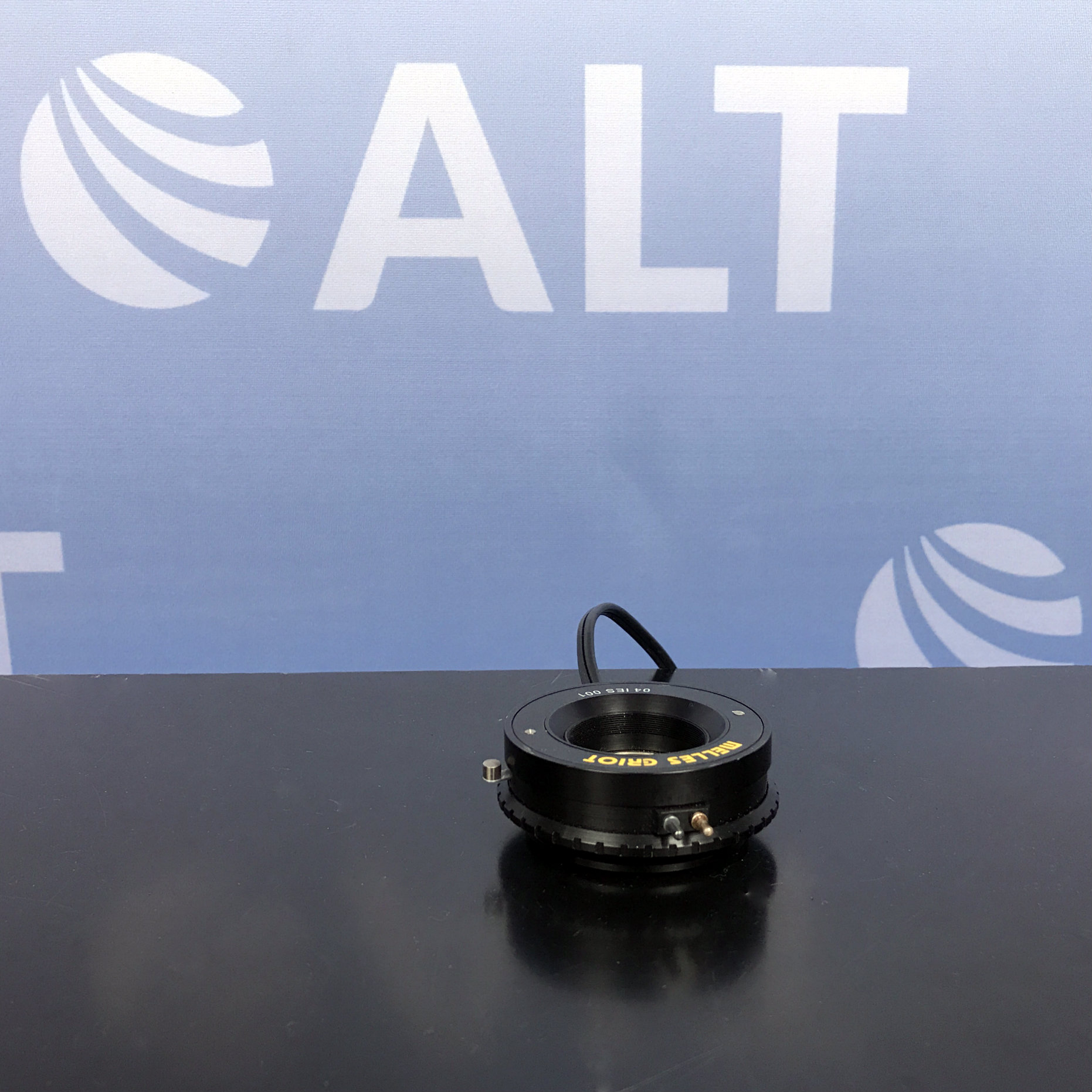

Melles Griot 04 IES 001 Electrically Driven Shutter

The Melles Griot 04 IES 001 Electrically Driven Shutter is an electronic shutter that is well suited for laboratory and OEM optical applications that demand the ability to shutter light beams with 100% transmission and high extinction.

In addition to the shutter blades, the Melles Griot 04 IES 001 Electrically Driven Shutter contains an iris diaphragm which can adjust the shutter’s clear aperture from maximum to approximately 10 percent of maximum. For electronic flash synchronization or event triggering, the Melles Griot 04 IES 001 Electrically Driven Shutter includes an X-syncronization switch that provides electrical continuity when the shutter blades are fully open.

For ease of setup, a manual actuation lever permits the opening and closing of the shutters without an electrical signal. The unit features a mounting flange that threads onto the shutter’s rear outer mounting threads.
