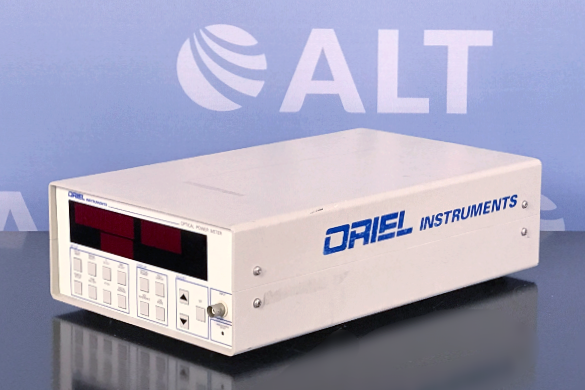

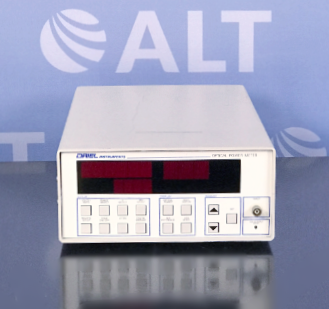

Newport/Oriel 70310 Optical Power Meter

Features of the Newport/Oriel Model 70310 Optical Power Meter include:

– Universal Detector Readout
– Pico ammeter and Millivoltmeter
– RS-232 and IEEE-488.2 Computer Interfaces
– Calibrated Readings
– Auto ranging or Fixed Scale with Linear or dB Units
– Measures absolute DC signal or true RMS value for AC signals up to 100 kHz (with appropriate detector)
– Works with almost any UV, VIS, or IR detector
– Accuracy: DC: ±0.1% full scale
          :AC: ±0.5% full scale
– Analog output: ±2 V full scale
– Communications: RS-232 and IEEE-488 (compliant with IEEE-488.2 standard)
– Display: 4 ½ digit LED array
– Display modes: Optical power
               : Volts/Amps
               : Linear/log
                : Absolute/relative (dB)
– Power: 115 V/230 V, 50/60 Hz
– Weight: 8.5 lbs. (3.9 kg)
