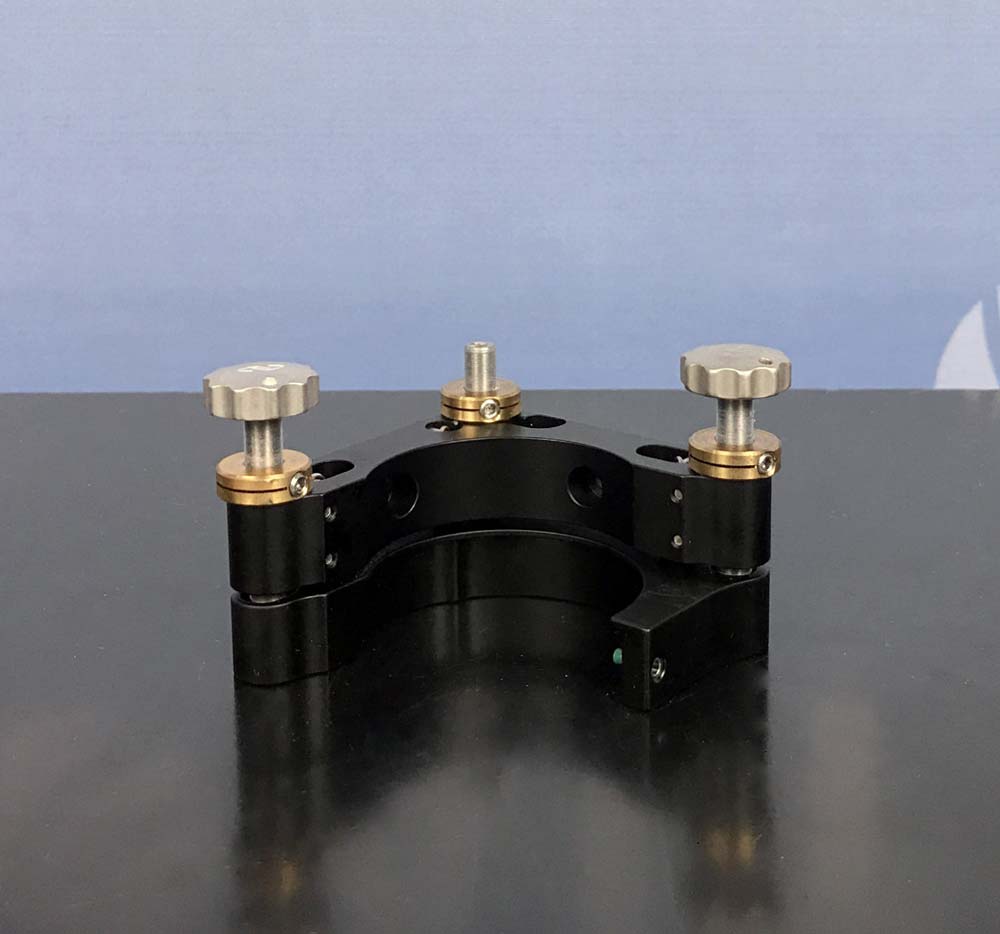

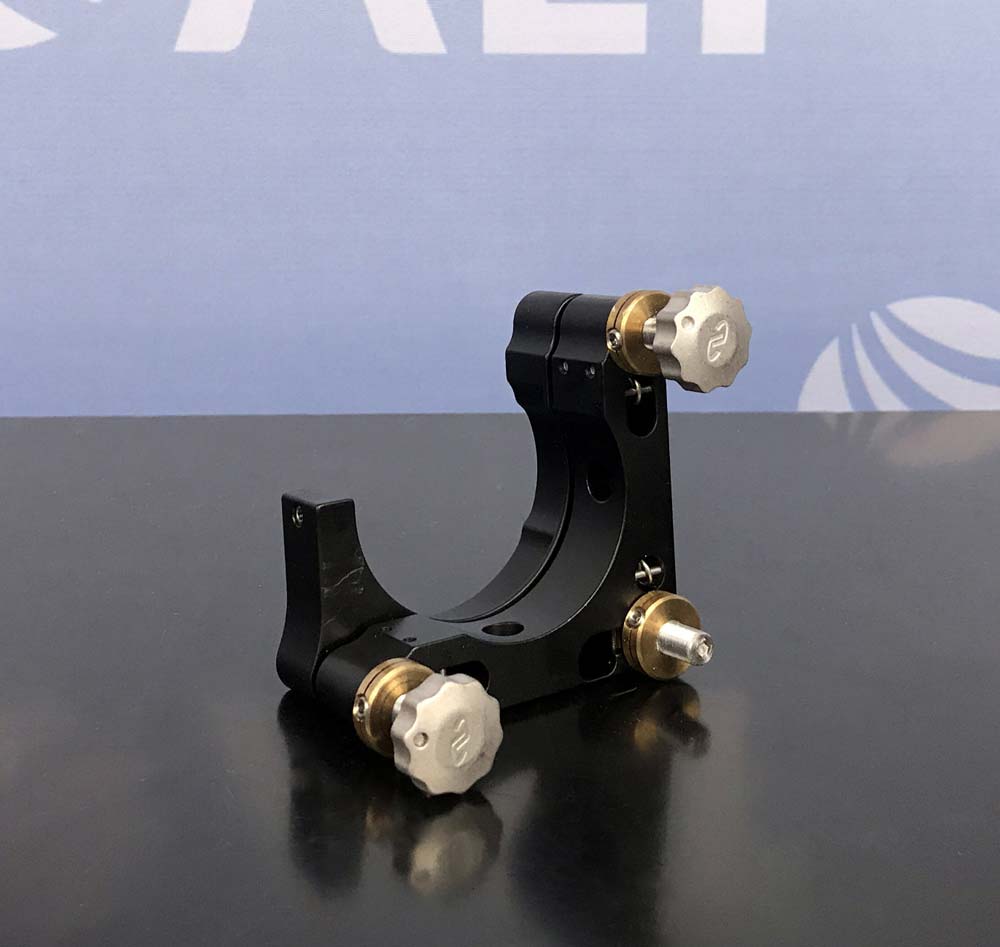

Newport U200-A Ultima Clear Edge Mirror Mount

The U200-A Ultima Clear Edge Mirror Mount offers unsurpassed functionality. Thick front and rear plates and optimized, stiff springs improve the long-term stability and provide greater protection against vibrations. The patented clear quadrant design exposes the edge of the optic, allowing beams to pass close to the edge of a mounted optic. The actuators can be quickly changed to accommodate a broad selection of adjustment screws, micrometers, and motorized actuators. Hard carbide pads enable smooth, repeatable motion.

Convenient clearance mounting holes on each of two sides are compatible with either 8-32 or M4 screws providing quicker, more precise, and more secure mounting. ULTIMA mounts can be mounted to posts for adjustable height or pedestal posts for a stable fixed height.

Specifications:

• Mechanism: Kinematic
• Optic Diameter: 50.8 mm
• Adjustments: z, θx, θy
• Material: Anodized Aluminum
• Thread Type:8-32 (M4) CLR
