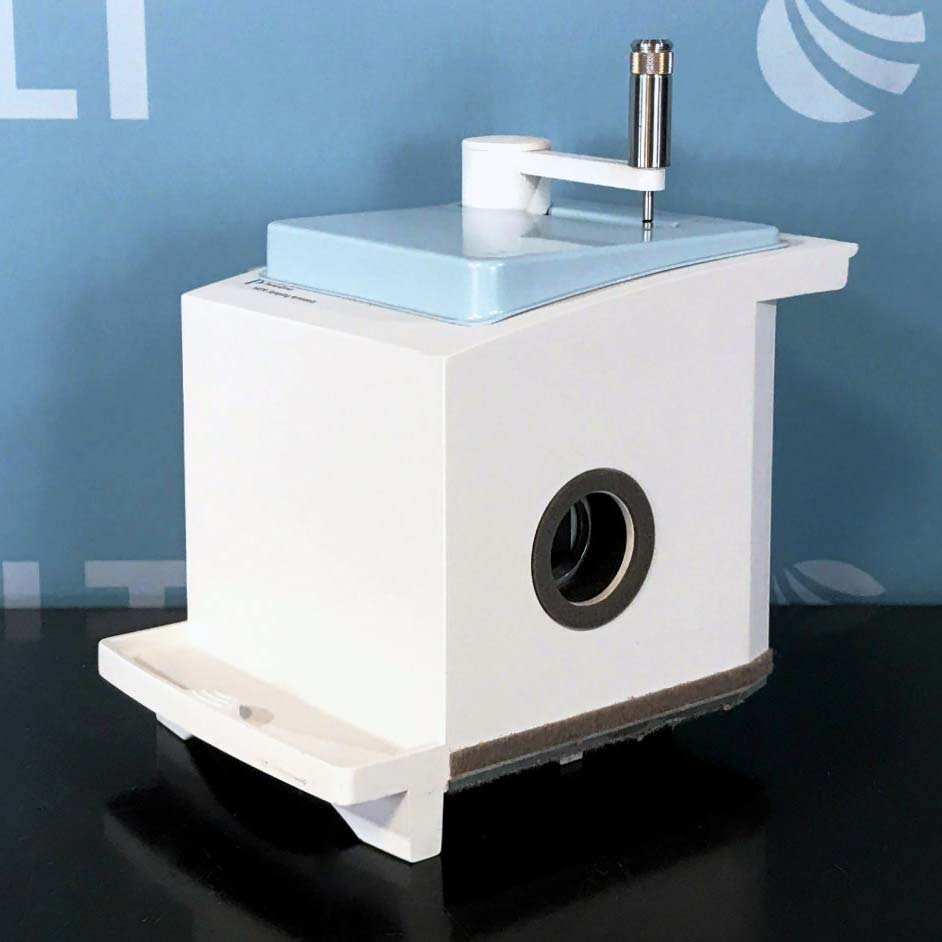

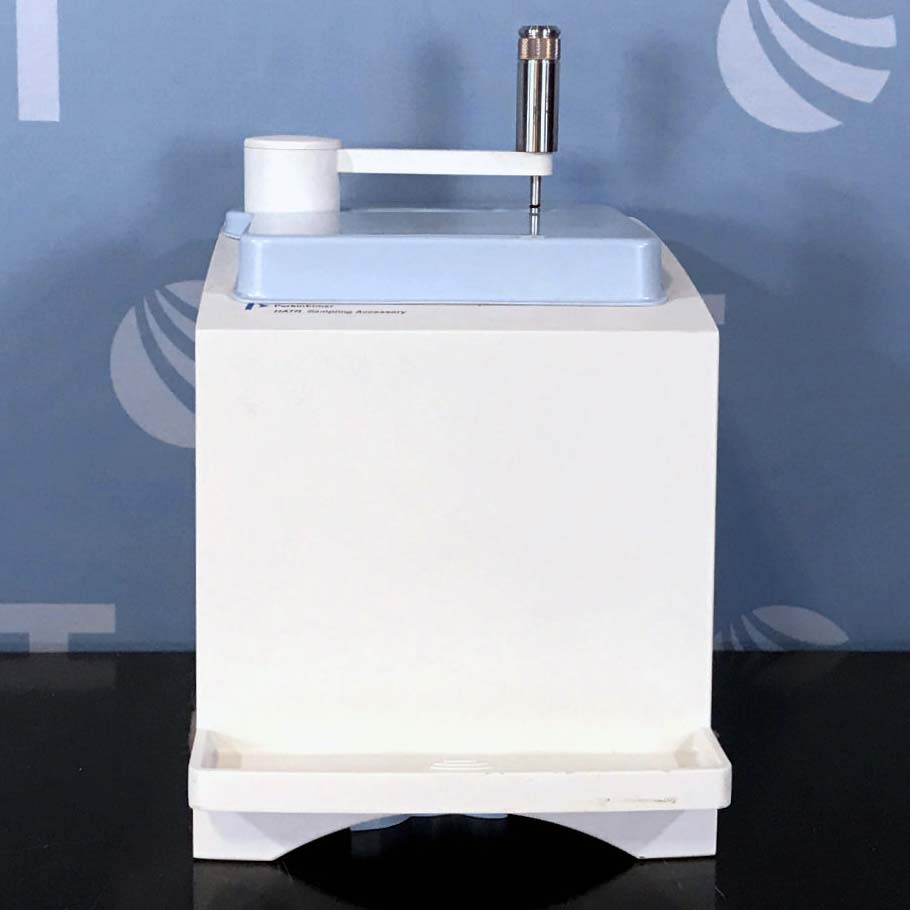

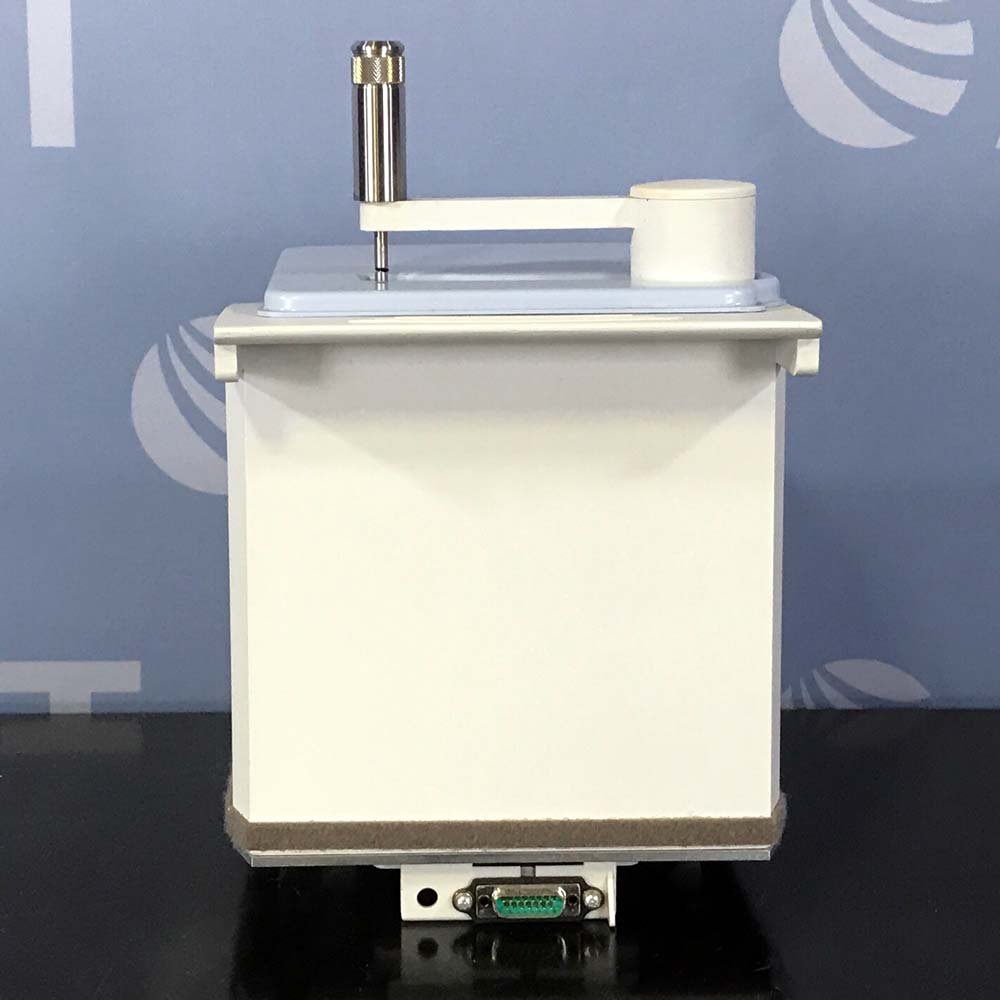

PerkinElmer HATR Sampling Accessory

The PerkinElmer Horizontal ATR (HATR) Accessory offers a fast, reliable means for analyzing a wide range of solid, liquid and paste samples not easily examined by conventional transmission techniques, based on attenuated total reflectance principle.

For use with the PerkinElmer Spectrum 400 dual range system, Spectrum 100 FT-IR and FT-NIR spectrometers or the Spectrum One FT-IR spectrometer.

Features:

• Automatic recognition – as soon as the accessory is placed in the sample compartment, the HATR accessory is recognized along with its serial number, and system suitability checks can be carried out
• Automatic optimization – the optics are automatically optimized for all various types of crystal
• Zero alignment, zero set-up – once locked into the sample compartment, the accessory is ready to be used without any alignment necessary
• Integrated – the plug-in module design means the accessory becomes an integral part of the instrument once installed
• Automatic recognition of top-plate crystal material, angle and serial number
• Displays sample application force to ensure reproducibility of analyses
• Wide range of optional top-plate materials and angles of incidence available
• HATR ZnSe 45° Trough-plate, P/N L1200314
