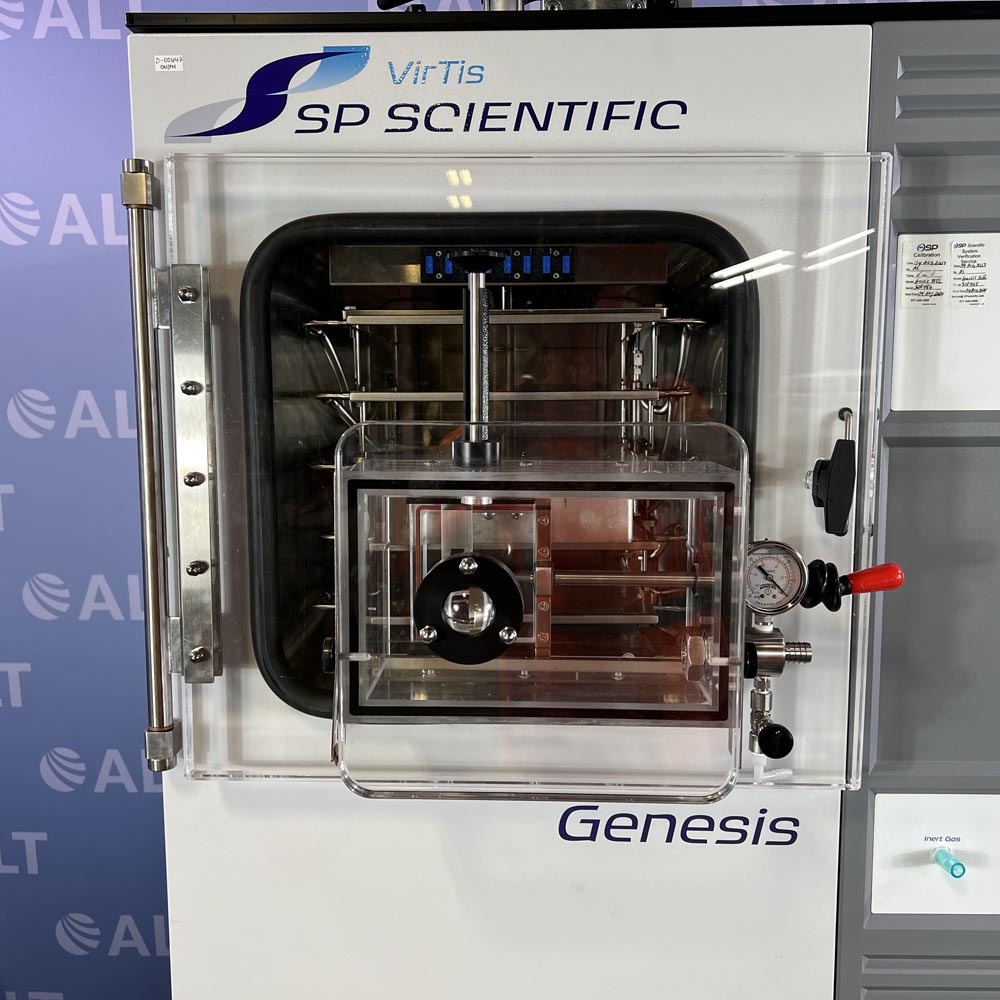

SP Scientific VirTis Genesis 35EL Pilot Freeze Dryer

The SP Scientific VirTis Genesis 35EL Pilot Freeze Dryer is engineered for efficient and reliable freeze-drying of a variety of materials, including diagnostic kits and bulk liquid products. It provides advanced capabilities for preserving sensitive products and is suitable for both laboratory and pilot-scale production.

Specifications:

• Dimensions (WxDxH): 38 x 35 x 50 in (96.5 x 88.9 x 127 cm)
• Condenser max low -85C (-82C @ 50 Hz)
• Shelf temperature range of -70C to +65C (-67C @ 50 Hz)
• Shelf temperature control range of -55C to +65C
• Shelf temperature uniformity of +/- 1C
• Condenser capacity of 20 liters/24 hours, 35 liters max capacity
• Hot gas defrost
• Smooth-wall external condenser design
• Power Requirements: 208-230V, 60Hz
• Air-Cooled Refrigeration

Additional Features & Accessories:

Five (5) Product Shelves (316 L) included

• Provides five usable 10.75″ (273mm) X 20.5″ (521mm) shelves and one radiant shelf
• 7.65 ft2 ( 7110 cm2) of usable shelf area
• Shelf inter-distance of 2.27″ (57.7 mm)

Genesis stoppering shelf configuration included

• System will have movable shelves
• Equipped with hydraulic (top-down) ram for stoppering vials under vacuum
• System is able to back fill with inert gas to a user defined vacuum set point prior to stoppering

LyoS 2.0 Automated Control System with Package L included

• Allen Bradley CompactLogix PLC
• GE Proficy iFIX HMI/SCADA
• 3 levels of security (Guest, Operator and Supervisor)
• Built-in, automated function and leak rate testing
• Controls instrumentation: (8) eight type T product thermocouples, (1) one condenser temperature probe, (1) one shelf temperature probe, Pirani/convectron vacuum transducer, MKS Capacitance Manometer, PVG/CM differential process control software

LN2 trap included

• to catch/condense certain solvents (such as organic solvents) with very low freezing temperatures

Sample Thief accessory included

• to periodically remove vials from the freeze dryer for residual moisture content determination

Part #100028714

Configuration: GENESIS,35L,WIDE,EL,5 SHELF,STOP,AC,208-230V 60HZ 1PH,GVP-CHEM,LYOS-L,4″PIVA,SOLVENTS PKG,LN2

Applications:
Ideal for pharmaceutical, biotech, and research applications where precise and efficient freeze-drying is essential for preserving the quality of sensitive materials, including point-of-care (POC) diagnostic kits.
