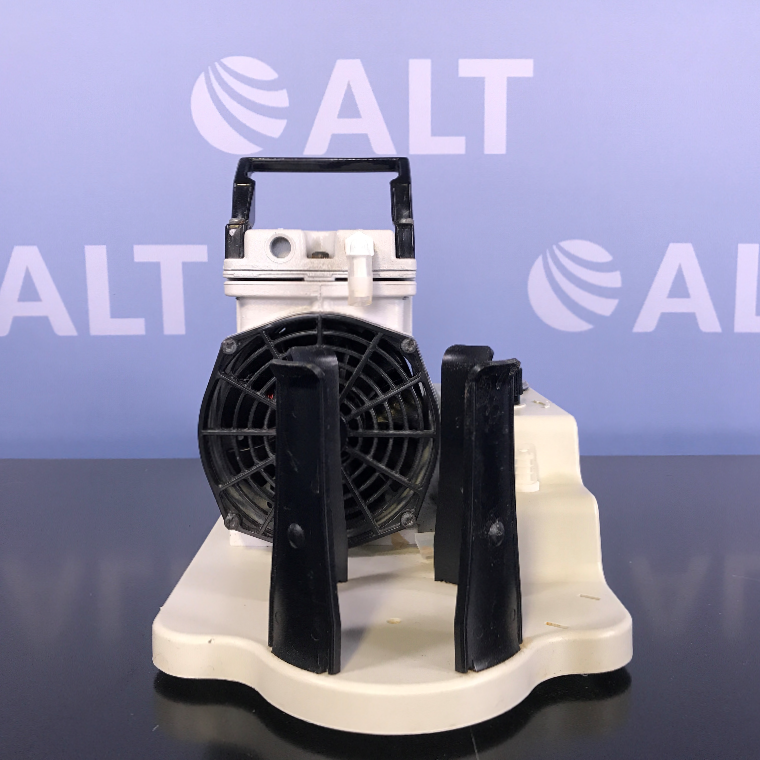

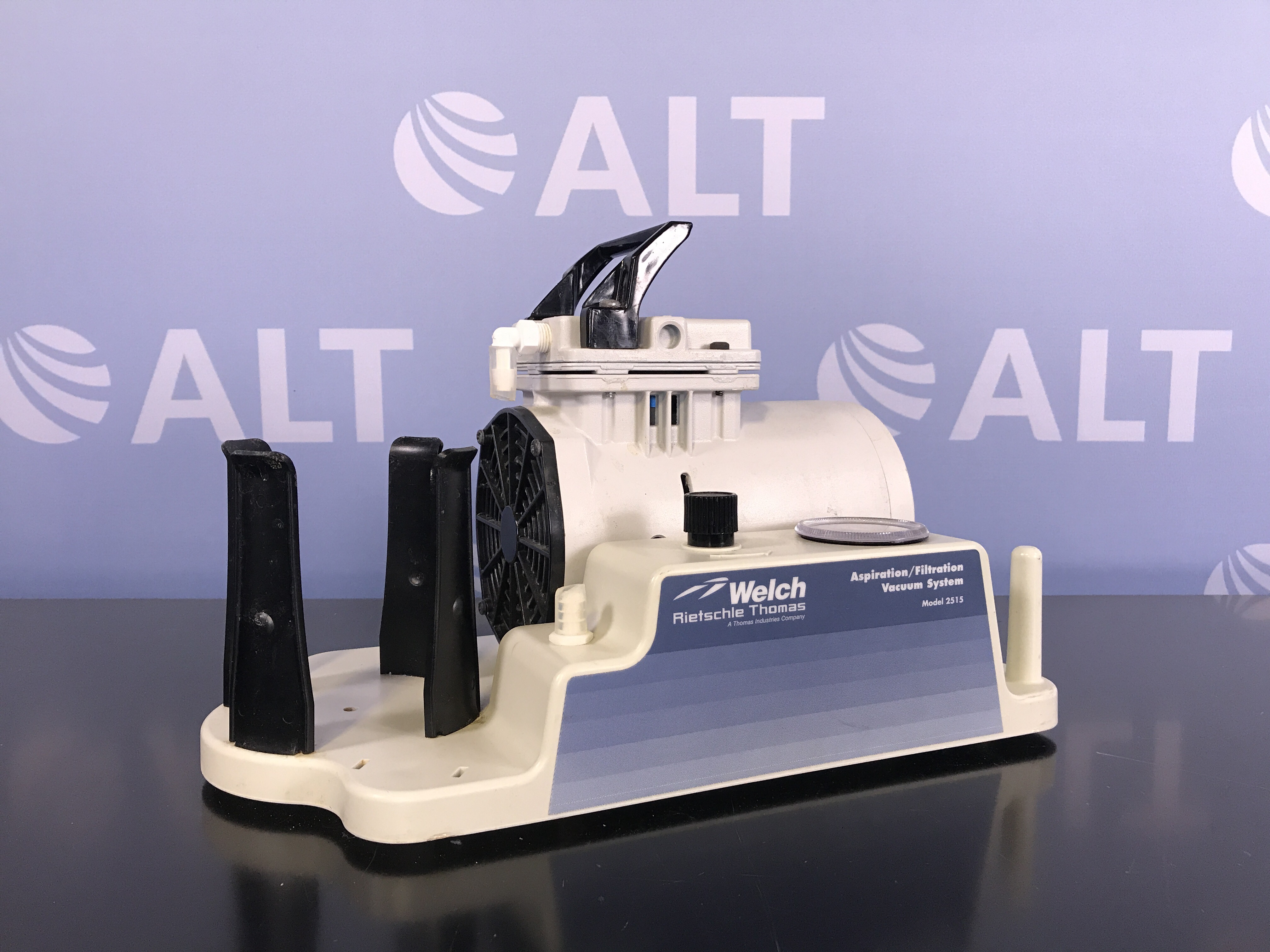

Welch Aspiration/Filtration Vacuum System Model 2515
ITEM: 26829 Out of Stock
Price: $0.00
Your Trusted Source for Used Lab Equipment
Free 90 Day Warranty
Up to 3 Year Warranty Upgrade Available
Tested & Refurbished Prior to Shipping
Out of stock
The Welch 2515 Aspiration/Filtration Vacuum System Model is controlled by pressure sensitive turquoise control on top of hand space. With a plastic screw, and residual suction level that can be set by users preferences.
Features:
– Bleach resistant construction for extending service life.
– Continuous vacuum level monitoring with dial vacuum gauge.
– Powered by WOB-L piston vacuum pump.
Specifications:
– Electrical requirements: 115V, 60Hz
– Horsepower: 0.13hp
– Pressure: 93mbar
– Free air displacement: CFM(L/Min) at 60Hz: 1.2(34), m3/hr(L/min) at 50Hz: 1.7(28)
– Ultimate pressure: 70 torr ( 93mbar )
– Maximum vacuum in Hg: 27.2 in.
– Motor: 0.13 hp ( 93w)
– Tubbing: 0.25 in. ( 7mm )
– Intake exhaust thread NPT: 1/4
– Weight: 14.8 lb. ( 6.7 kg )
– Dimensions (W x H x D): 21 x 25.5 x 14.8 in. ( 8.3 x 10 x 37.5 cm )
