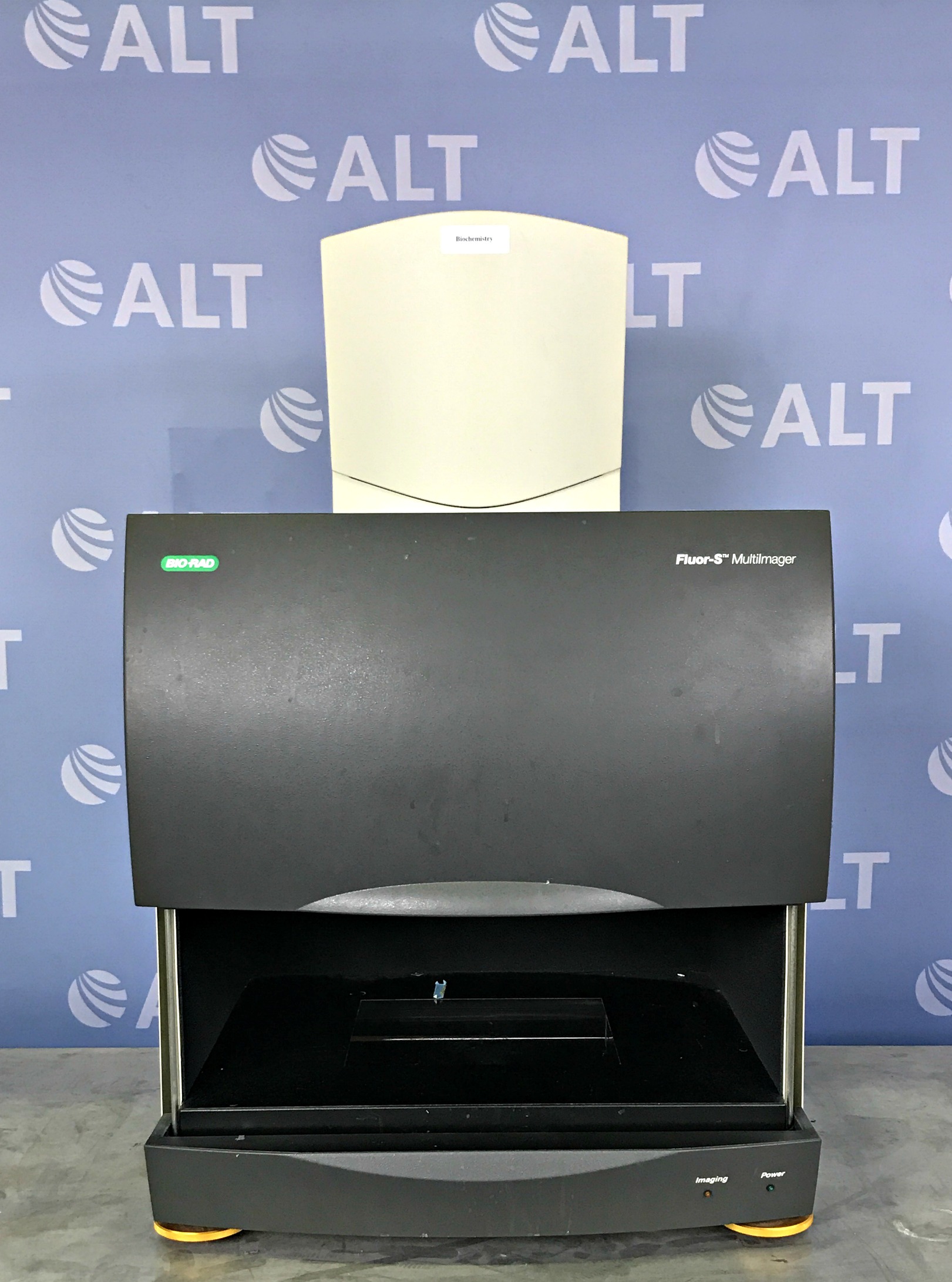

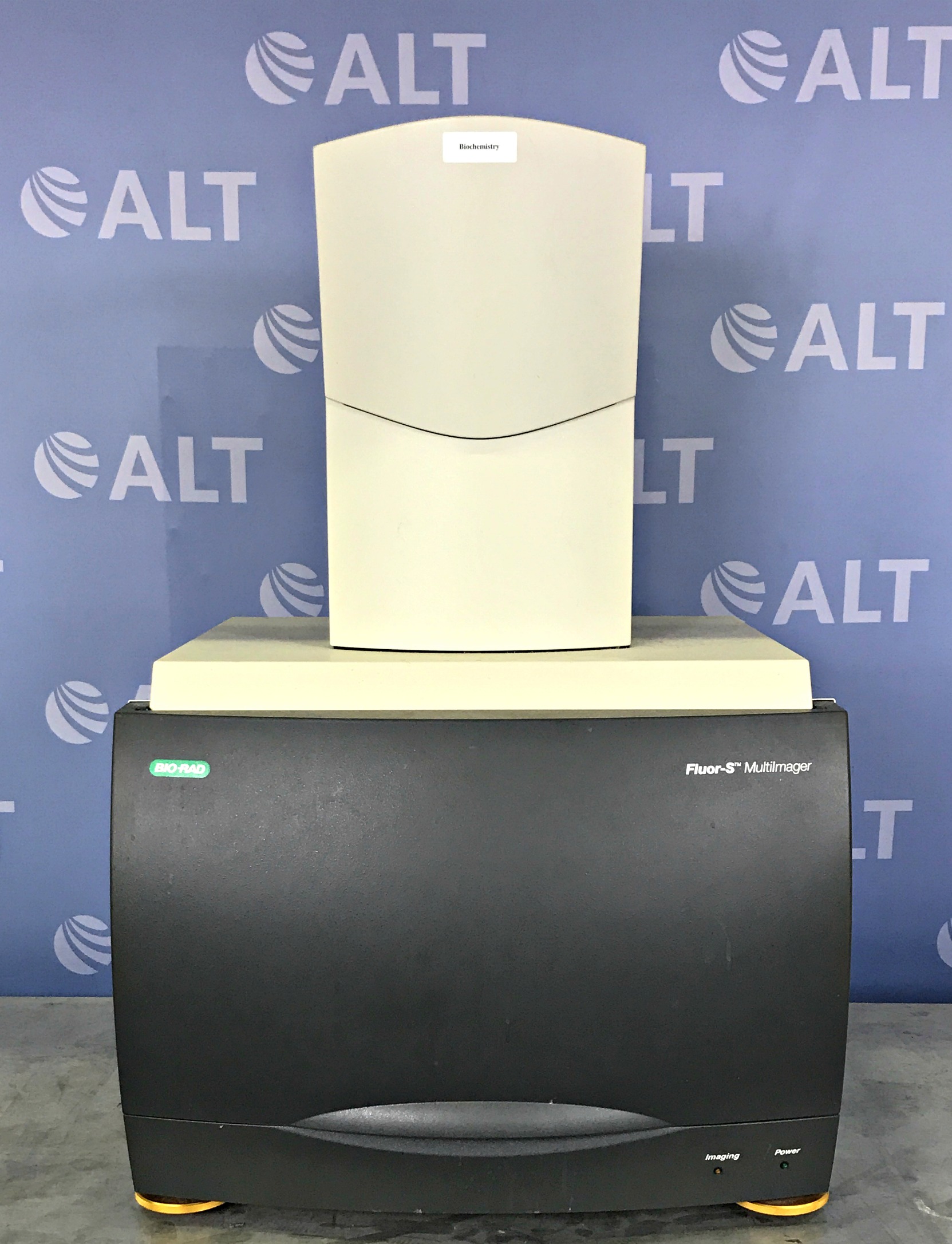

Bio-Rad Fluor-S MultiImager

Specifications:

Detector:             Peltier Cooled CCD

Pixel Density:     12-bit

Linear Dynamic Range:  3 Orders (Extendable through multiple imaging)

Pixel Resolution:               1340 x 1037 pixels

Spatial Resolution:          150µ (Custom higher resolution lenses available)

Sensitivity:          1-5 femtomoles FITC

Scan Speed:       1 second – unlimited

Illumination Modes:        Scanning and Epi-illumination

Emission wavelengths:  520nm-660nm, 530nm, 520nm, 610nm (Custom filters available)

Excitation Source wavelengths: 290nm-330nm, White Light

Software:            Windows NT and PowerMacintosh

File Size:               1.5 MB or 2.7 MB

File Format:        TIFF and BRIFF (Bio-Rad Image File Format)

Imaging Area:    25 cm x 30 cm

Sample Stage:    40 cm x 60 cm

Dimensions:       60 cm (L) x 40 cm (W) x XX cm (H)

Weight: 168 Kg
