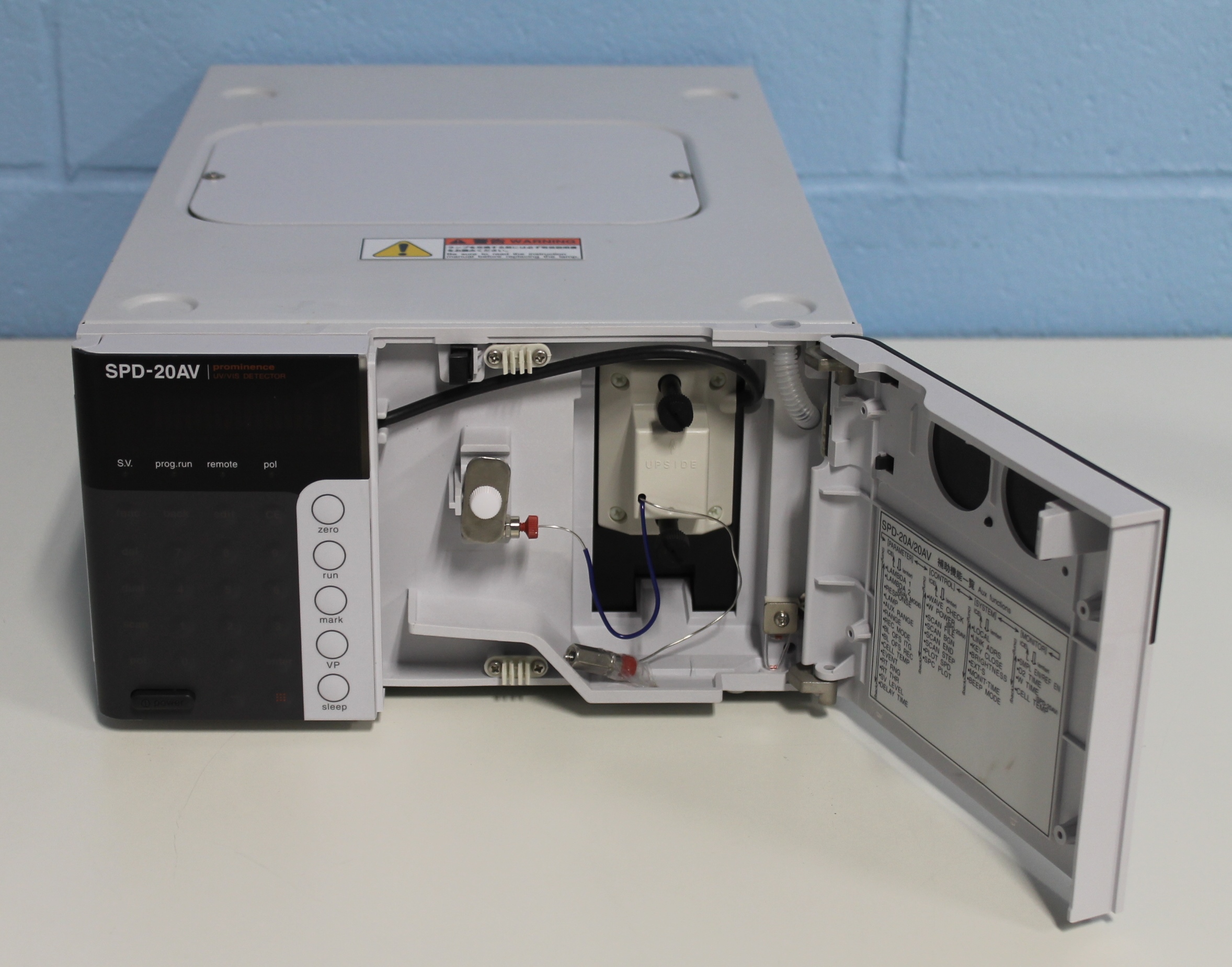

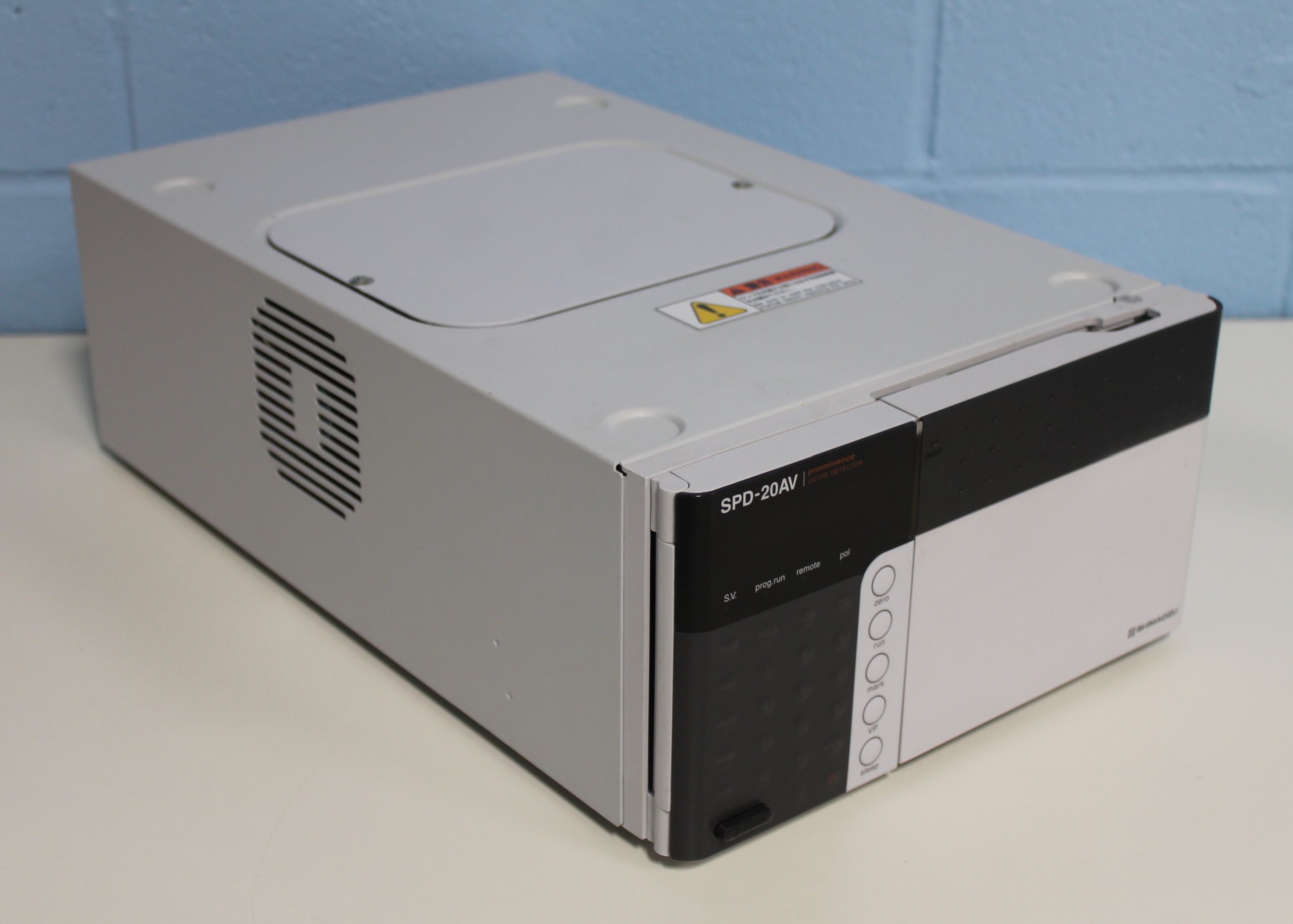

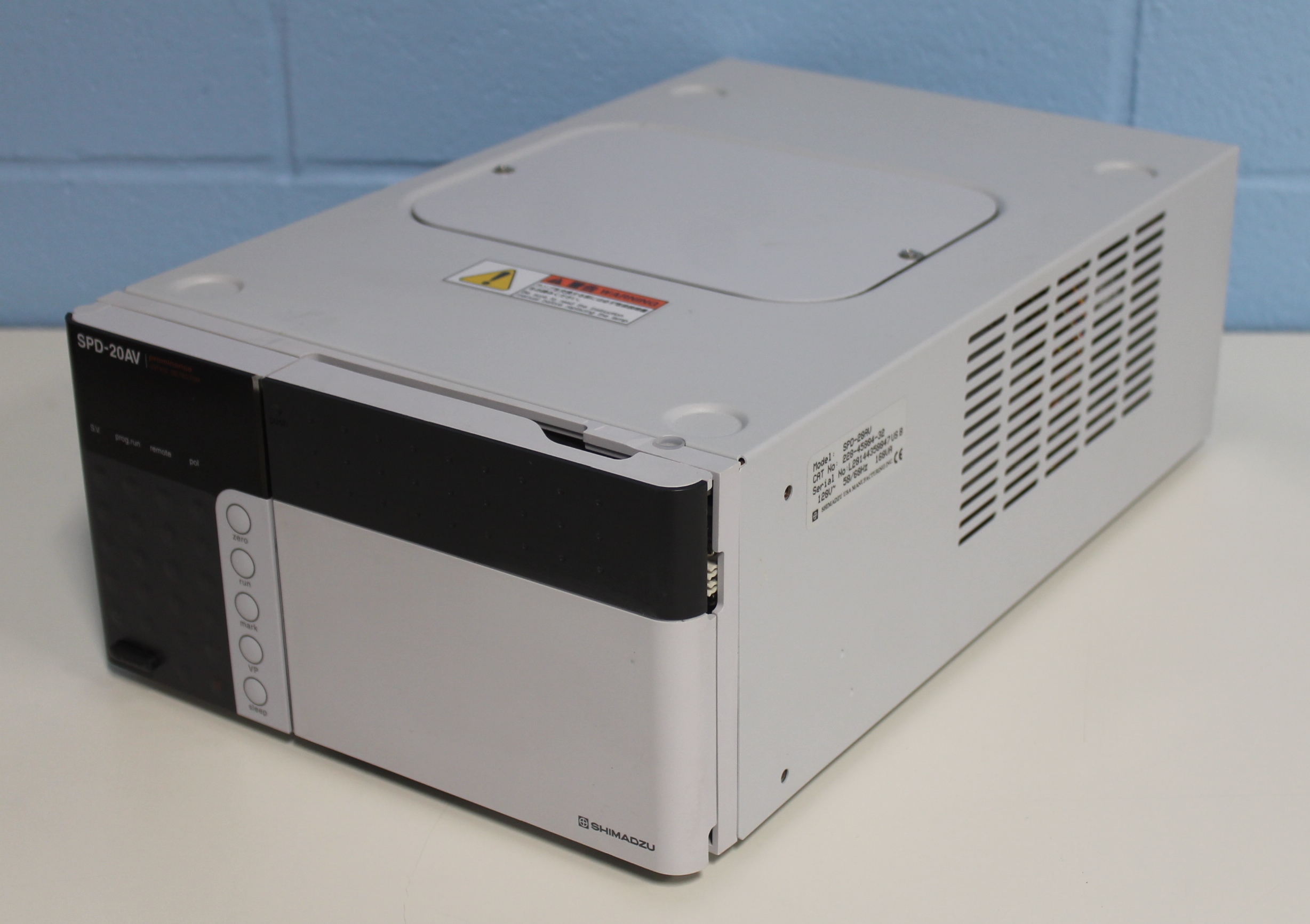

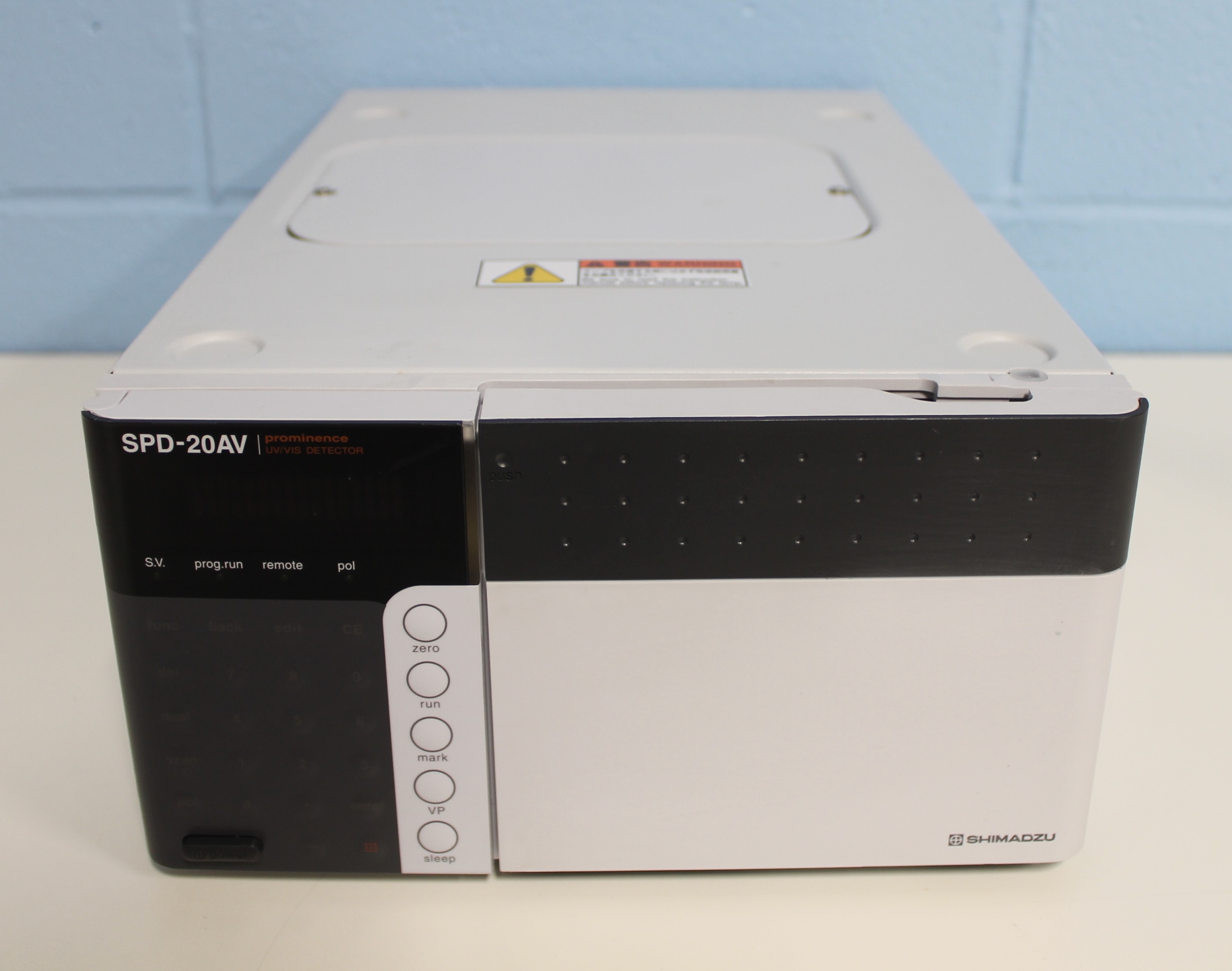

Shimadzu Prominence SPD-20AV UV/Vis Detector

The Shimadzu Prominence SPD-20AV UV/Vis Detector offers an exceptional level of sensitivity (noise level of 0.5×10-5 AU max.) and stability. This system enables high-sensitivity wavelength-programming detection for ultraviolet light and the entire visible-light range with use of the deuterium and tungsten lamps simultaneously. Additional features include: greater baseline stability, superior linearity (2.5AU), internal validation protocol, and dual-wavelength measurement.

Specifications:
– Wavelength range: 190-900nm
– Bandwidth, slit width: 8nm
– Wavelength accuracy: 1nm max
– Wavelength precision: 0.1 nm max
– Noise: 0.5 X 10-5 AU (under specified conditions)
– Drift: 1 X 10-4 AU/h (under specified conditions)
– Linearity: 2.5 AU (ASTM standard)
– Cell Optical wavelength: 10 mm, capacity: 12µL, withstand pressure: 12 MPa
– Cell temperature-control range: 5oC above room temperature to 50oC
– Dimensions: 260 (W) x 140 (H) x 420 (D) mm
– Weight: 13kg
– Power requirements: 100 VAC, 160 VA, 50/60 Hz
