Category: HPLC, UPLC, & LC/MS | Subcategory: Detectors | Manufacturer: Shimadzu

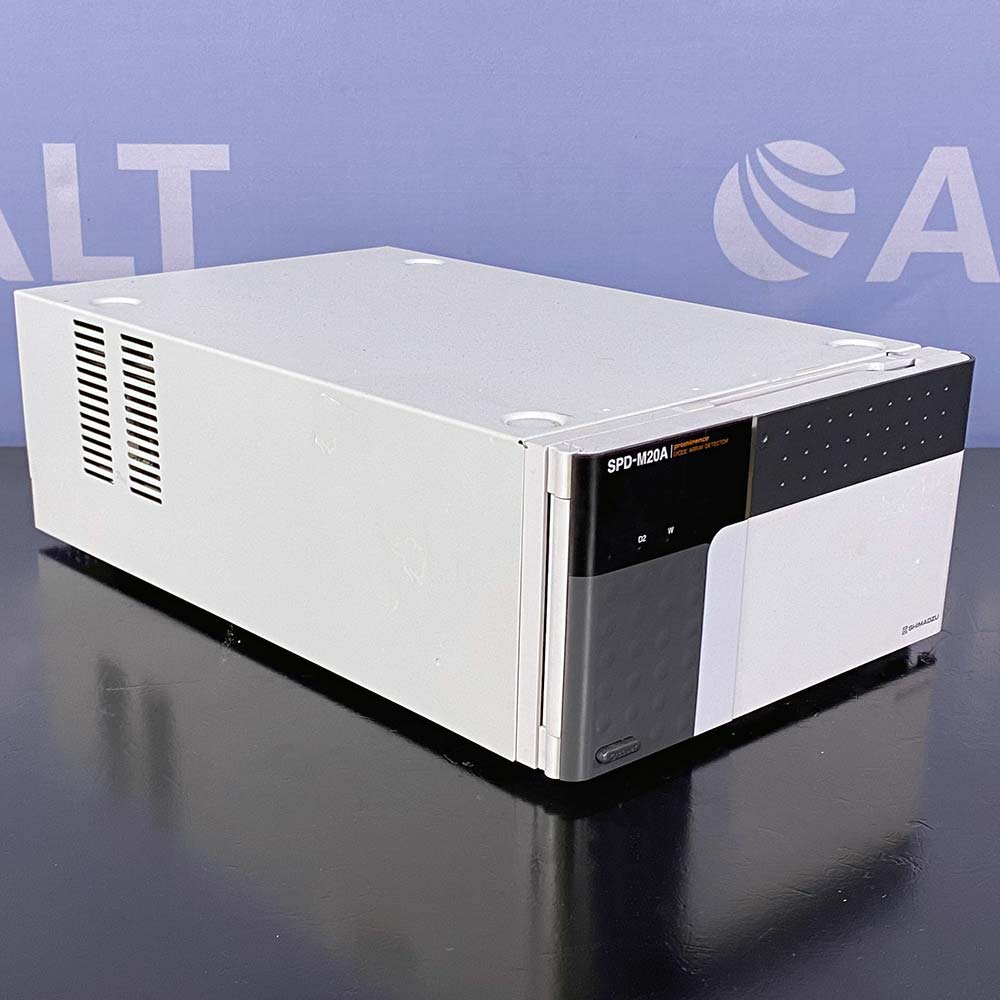

Shimadzu SPD-M20A Photodiode Array Detector
ITEM: 22639 Out of Stock
Price: $0.00
Your Trusted Source for Used Lab Equipment
Free 90 Day Warranty
Up to 3 Year Warranty Upgrade Available
Tested & Refurbished Prior to Shipping
Out of stock
The Shimadzu SPD-M20A Photodiode Array Detector offers the most advanced level of sensitivity and stability. Features include: high sensitivity mode with an 8 nm slit width; noise level of 0.6×10-5 AU; greater baseline stability; superior linearity; and web browser control.
| Specifications: | |
| Light Source | Deuterium (D2) lamp, tungsten (W) lamp |
| Number of Diode Elements | 512 |
| Wavelength Range | 190 to 800 nm |
| Bandwidth, Slit Width | 1.2 nm (high-resolution mode), 8 nm (high-sensitivity mode) |
| Wavelength Accuracy | 1 nm max. |
| Wavelength Precision | 0.1 nm max |
| Noise | 0.6 X 10-5 AU (under specified conditions) |
| Drift | 5 X 10-4 AU/h (under specified conditions) |
| Linearity | 2.0 AU (ASTM standard) |
| Functions | Contour output, spectrum library, MAX plotting |
| Optical Wavelength | 10 mm, capacity: 10µL, withstand pressure: 12 MPa |
| Cell Temperature-Control Range | 5°C above room temperature to 50°C |
| Web Control | Parameter setting, log management, management of consumable parts, etc. |
| Buffer Memory | Approx. 20 minutes of data in the entire wavelength region (only when using LCsolution) |
| Operating Temperature Range | 4°C to 35°C |
| Dimensions | 10.24″ W x 16.54 x 5.51″ H (26 x 14 x 42 cm) |
| Weight | 26.46 lbs. (12 kg) |
| Power | 100V, 50/60Hz, 150 VA |
