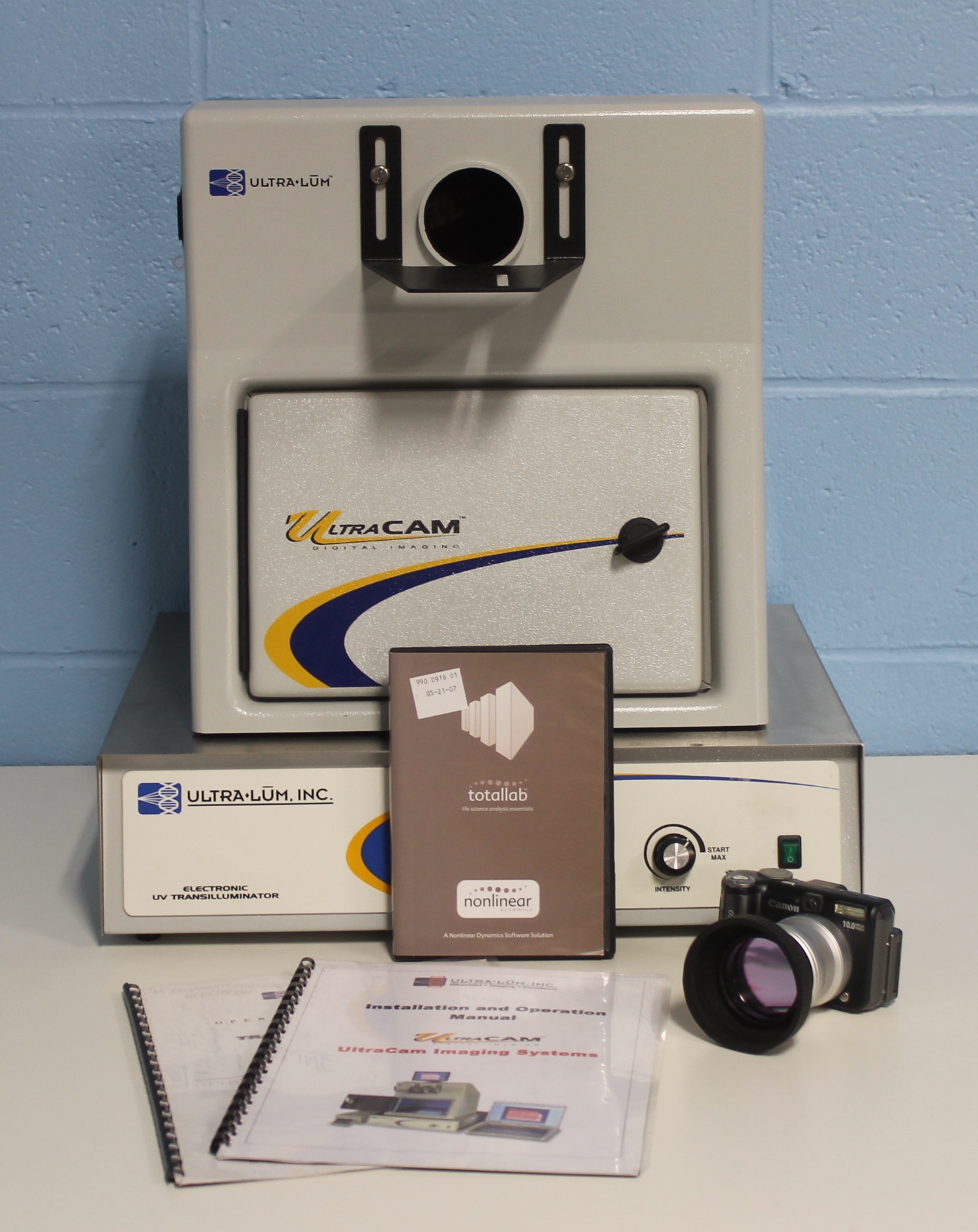

UltraCAM Digital Imaging System

The UltraCAM Digital Imaging System is a simple and affordable system for basic gel documentation. The unit has a high resolution, 10 megapixel digital color Canon camera mounted on a sturdy UltraCam enclosure and sits safely and securely on most UV transilluminators. Features include: easy access door for placement and removal of gels and plates; print images directly to a thermal

printer.

Camera Specifications
– Sensor: 1/1.8” RGB Color CCD
– Resolution: 3725 x 2790 (10.4 megapixel)
– Bit Depth: 24-bits (16 million colors)
– Lens: F2.8 to F4.1
– Zoom: 4x Optical, 4x Digital
– Screen: 2.5” TFT Color LCD
– Exposure: 15 to 1/2500 sec
– Settings: Superfine, Fine, Normal
– White Balance: Fluorescent/Fluorescent H
– Software: Live Preview & Acquisition
– File Formats:JPEG
– Memory: 32MB SD Memory Card
– Card Reader: USB
– Power: 100-240V/50-60Hz

System Specifications
– Epi-illumination: White
– Filter (Ethidium Bromide): 600nm IR Blocking
– Access Door: 10.5”W x 6.5”H
– Maximum Viewing Area: 10.75”W x 8.75”D (26cm x 22cm)
– Minimum Mounting Area: 11.75”W x 9.75”D (30cm x 25cm)
– Overall Dimensions: 14.5”W x 12”D x 15.5”H (37cmW x 30cmD x 39cmH)
– System Weight: 26 lbs (12 kgs)
– Electrical: 115/60Hz, 100/60Hz or 230V/50Hz
– Compatibility: PC or MAC
– Certifications: CE, CSA and FCC
