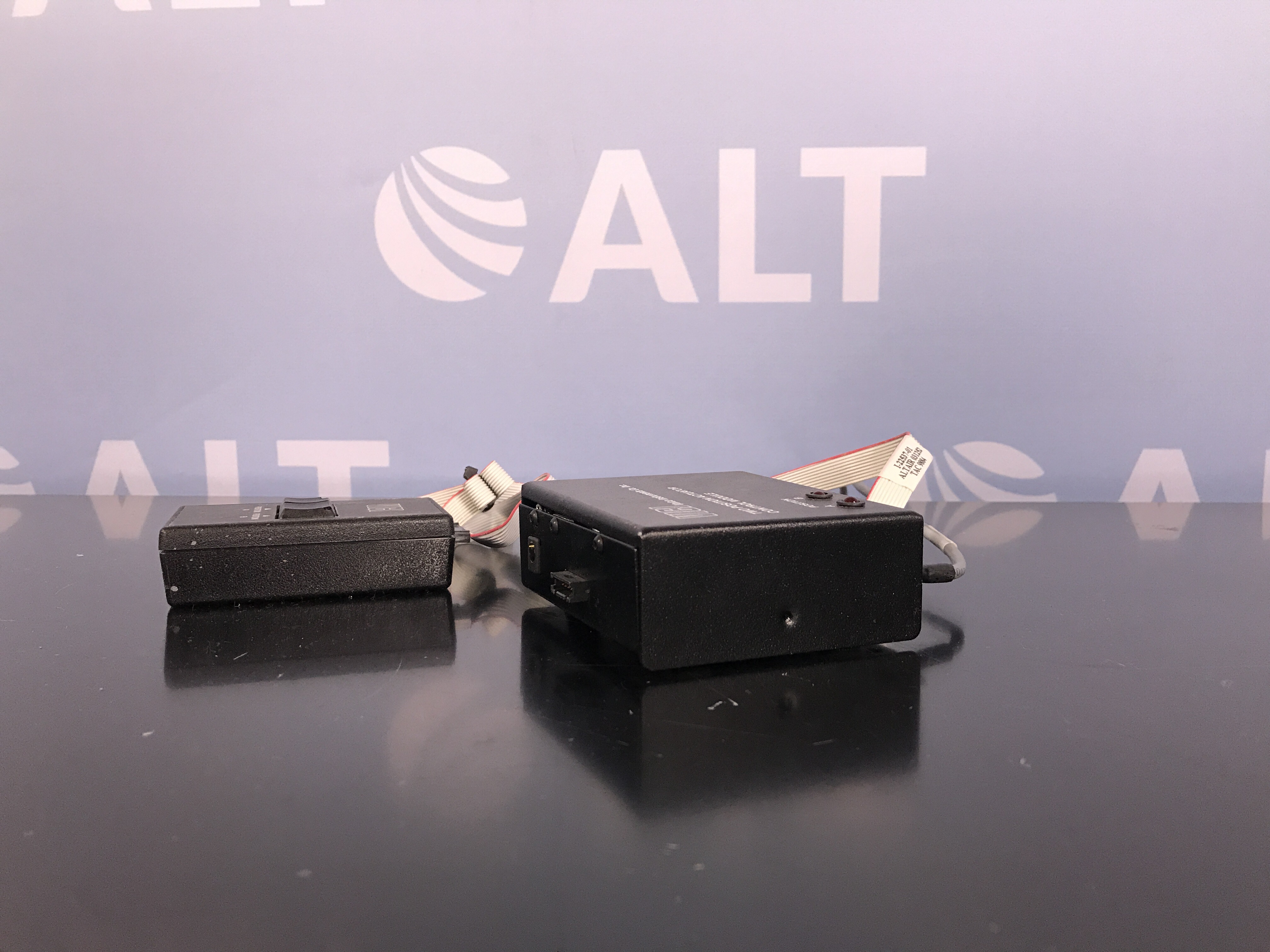

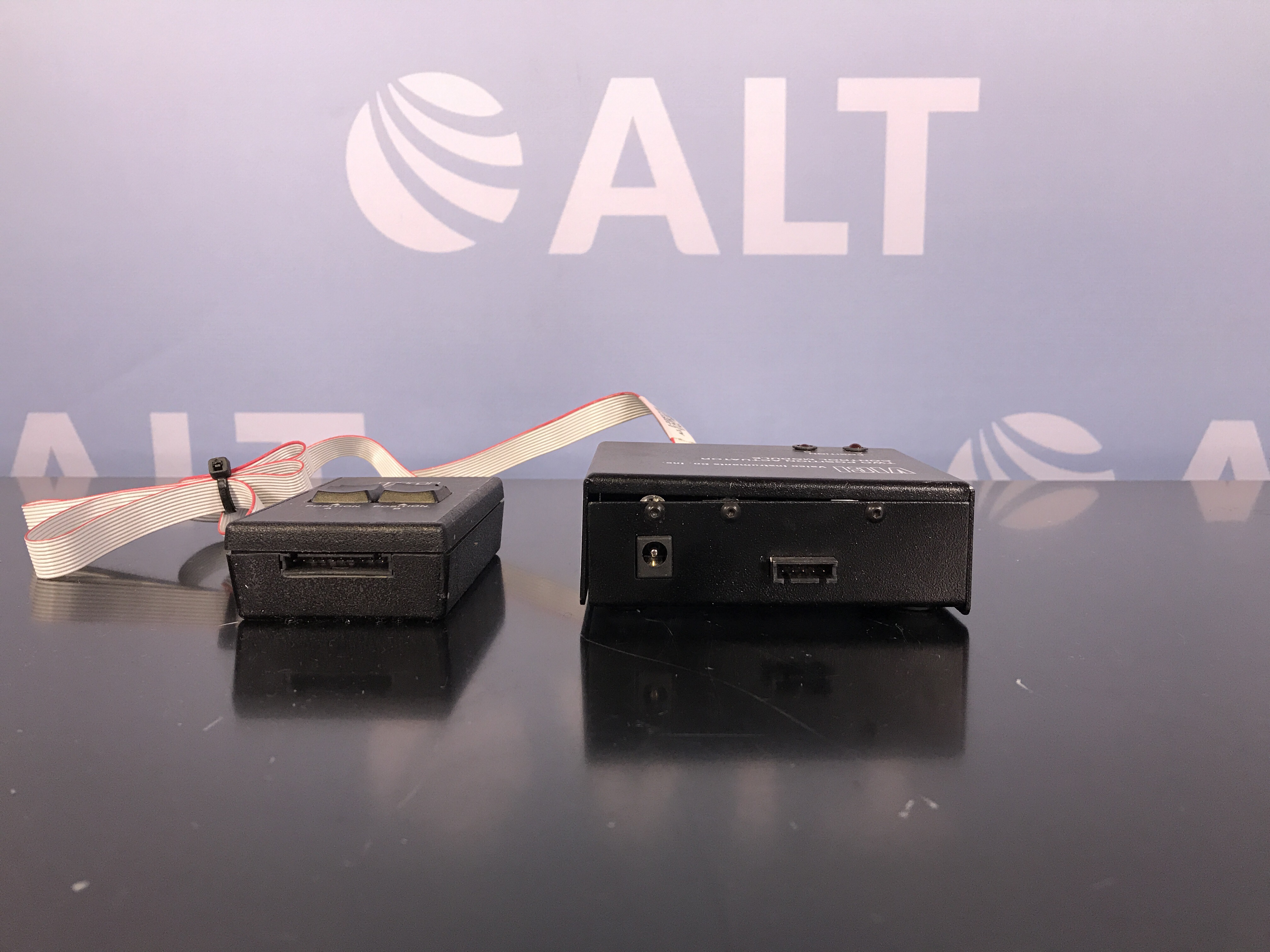

VICI Valco EPCA-CE Two Position Actuator Control Module

The VICI Valco EPCA-CE Two Position Actuator Control Module, includes:

Features:

– The actuator is self-adjusting from 30° to 90° – no valve alignment is necessary.
– Once a valve is installed by tightening the clamp screw, the actuator senses the positive stops within the valve and memorizes them in the first four moves.
– Motor driver output is through the five-pin connector: pins 1, 2, 4, and 5 carry the stepper motor phase drive signals. Pin 3 is grounded and tied to the cable shield to reduce electrical noise

Specifications:

– Input power: 24-28VDC supplied through a 2.5mm DC power jack
– Inner Pin: +voltage
– Outer Pin: ground
– Average DC current requirement: 2.5 amps
– Standby current draw is 60 milliamps
