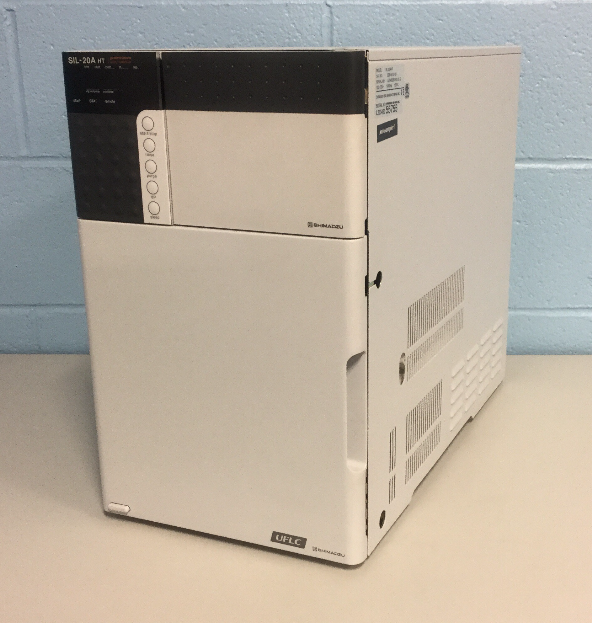

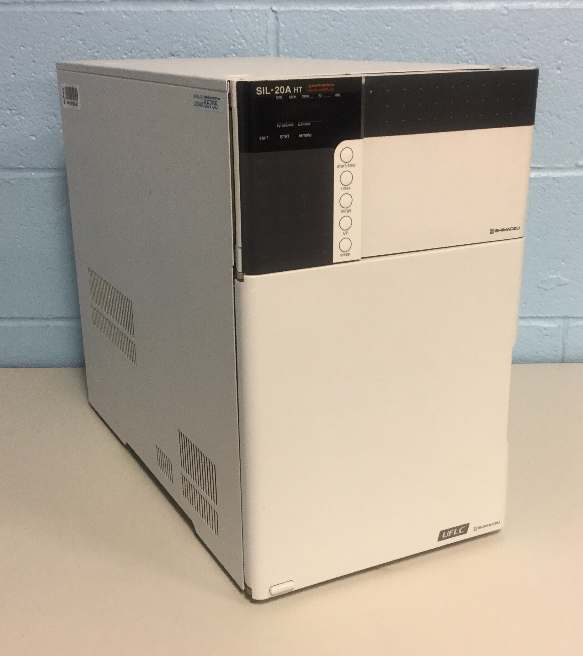

Shimadzu Sil-20AHT Direct Injection Autosampler

The Shimadzu Sil-20AHT is a total-volume injection type autosampler.  It enables high-speed injection and high-throughput sample processing withoutwasting sample.  It is designed to ensure greater stability, with improveddurability attained through modifications in valves and sample loops.  Multiplevial and plate types are supported, and a control vial rack isolates standardsfrom analytical samples.

Specifications and features include:

• Injection method Total-volume sample injection, variable injection volume
• Injection-volume setting range 0.1 to 100 µL (standard), 1 to 2,000 µL (option)
• Number of processed samples 175 (1mL vials), 105 (1.5mL vials), 50 (4mL vials), two 96-well MTPs, two 384-well MTPs, with ten 1.5mL vials in addition in a separate tray
• Injection-volume accuracy 1% max.
• Injection-volume precision RSD: 0.3% max. (for 10 µL injection, under specified conditions)
• Cross-contamination 0.005% max. (naphthalene, chlorhexidine)
• Number of repeated injections 30 max. per sample
• Needle rinsing Set freely before and after sample injection.
• Operating pH range pH1 to pH14
• Operating temperature range 4°C to 35°C
